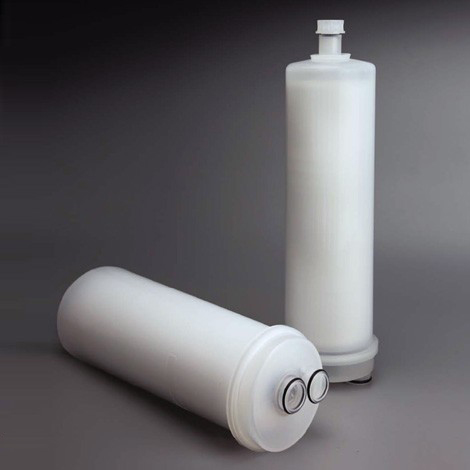

Disposable Design Filter RK12 Series

The unique structural design of the RK12 series filters eliminates the need to clean the filters after they have been replaced, reducing the cost of filter disposal and cleaning treatment, which avoid the direct contact of the fluids. Suitable for the filtration of toxic and harmful slurry.


The capsule structure reduces the gap between filter housing and inner cartridge and reduces the residue of the liquid.


The inner cartridge can be selected as required, lengths are abailable in 5"/10"/20".


Application

· Coating Liquid Filtration

· Slurry Filtration

· Colloid Filtration


  • Specification
  • Performance
  • Ordering Information


Materials of Construction


HC / HCB / HCTHCMX
Overall Length

195mm / 325mm / 583mm

No vent valve 162mm / 290mm / 542mm

195mm / 325mm / 583mm

No vent valve 162mm / 290mm / 542mm

Outer Diameter76.4mm76.4mm
Inner Diameter27mm27mm




Operating Condition

Filter MediaPPPET
End Cap/Core/CagePPPP
Max. Operating Temperature45°C45°C
Max. Differential Pressure4.5 bar4.5 bar





Ordering Information

    Vent TypeLength Removal RatingsSeal Material

RK12

=With Vent Valve05=5"HC5000= 75μmE=EPDM



B=No Vent Valve10= 10"HCB7500= 100μm



20= 20"HCR100H= 75μm




HCMX125H= 100μm





150H= 75μm





200H= 100μm





250H= 100μm





300H= 100μm
