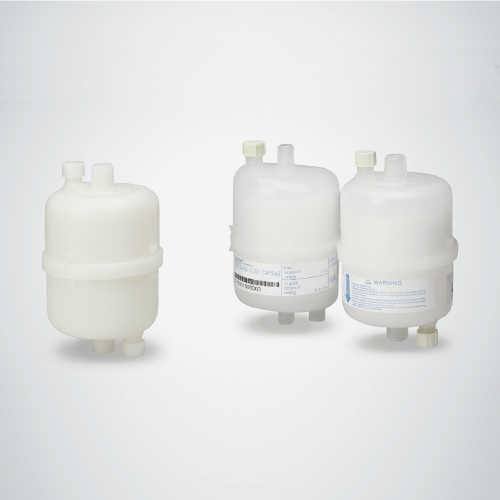

Photoresist Coating Capsule Filters
PRNC Filter Cartridge Series

PRNC Capsule Filters utilize use different filter membrane depending on filtration requirements and specifications. UPE and Nylon membranes have tight structure which results in a high precision filtration. HDPE capsules are used for controlling extractables. The capsule design meets small volume requirements and reduces the amount of liquid wasted.


Tight Membrane Structure

A tight membrane structure results in ahigh efficiency performance for removing particles and colloids.


Effective Extractable Control

HDPE capsule effectively controls any extractable. Thermal bonding eliminates that need for adhesives or surfactants.


Compact Design Yields Reduced Liquid Waste

Compact capsule design reduces the amount of liquid wasted.



  • Specification
  • Performance
  • Ordering Information


Materials of Construction

Filter MediumUPE / Nylon / PP
End cap / Core / CagePP / HDPE
Cage/End Caps60°C
Max. Different Pressure0.40 MPa @25°C
0.27 MPa @70°C


Product Information

VersionShape SShape N
Inlet / Outlet1/4" swagelok1/4" NPT
Vent /Drain1/4" swagelok1/8" NPT
Diameterφ 71.5mmφ 73mm
Length116 mm119 mm







Ordering Information

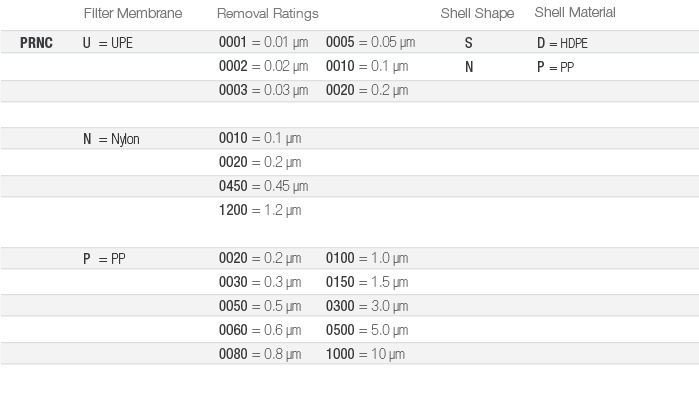

PRNC Ordering Information
