HF150 High Flow Filter Cartridge


Cobetter high flow filter cartridge is designed for membrane process high flow desalination plants.The high flow filter is a large diameter, single open ended pleated filter cartridge. The filter diameter is 6"/152 mm, with large filtration area,and high flow rate up to 90m³/hr. It can be widely used in various industries, with less quantity,less downtime for change-out and significant cost saving.

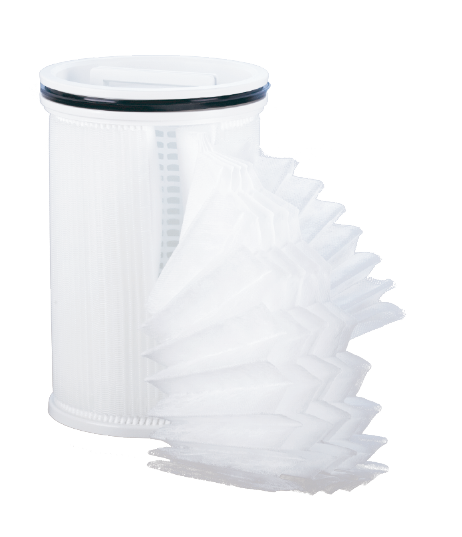

  • High density pleated filter type resulting in a high filtration area,high flow rates, longer service life, and high dirt holding capacity.
  • Multi-layered design provides gradient filtration.
  • Reduce Condensation. Vapor-permeable perperty.
  • Internal PP core guarantees no distortion and resists higher reverse differential pressure.

  • Ergonornically designed handle facilities fast and easy Installation and remove without special tools.



    Industrial
    Municipal Water, Pre-RO Filtration, Reclaimed Water, Coolants, Nozzle Protection, Boiler Condensate
    Petrochemicals
    Water-flooding, Produced Water, Enhances Oil Recovery, Completion Fluids, Amine Sweetening, Finial Products
    Chemical
    Quench Water, Aqueous Salt Solutions, Final Products
    Electronics
    Pre-RO Filtration, Process Water
    Food & Beverage
    Process Water
    Pharmaceutical
    Process Water


High Flow 02.png


Operating Conditions


PP

GF

    Filter Media

Pleated Polypropylene depth structur

Rein bonded glass fiber /Polyester support

    Support/Drainage

PolypropylenePolyester

    End Caps

Glass filled

polypropylene


    Core

Polypropylene

    Outside Material

PP Cage (HFPP150 Series)PET Net (HF150 Serise)

    Max. Operating Temperature

80°C121°C
    Max. Differential Pressure

HFPP150 (PP Cage)
0.40 Mpa/21°C
HF150 (PET Net)

0.38 MPa/21°C

0.15 MPa/80°C

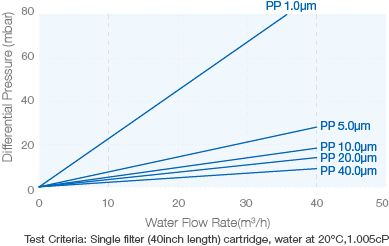

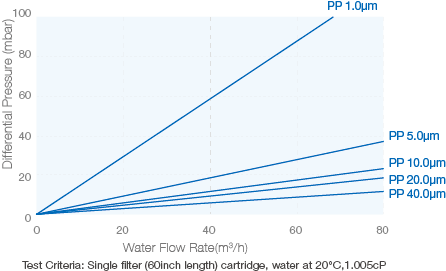

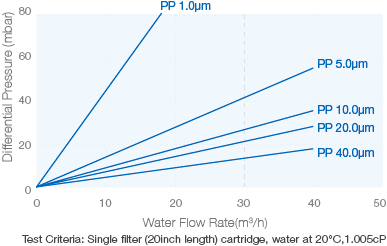

Flow Rate Characteristics

    Length

20"40"60"

    Design Flow

15 m³/h30 m³/h45 m³/h

    Max. Allowable Flow

30 m³/h60 m³/h90 m³/h

    Filtration Area

2.8 m²5.6 m²8.4 m²


Retention Rate Characteristics

    Particle Size

Filtration Efficiency HF150NB

PP0.8μm

PP1.0μm

PP2.0μm

PP3.0μm

PP5.0μm

PP10μm

PP20μm

    ≥1μm

99.89%99.82%95.00%86.97%79.86%42.23%24.38%

    ≥2μm

99.97%

99.87%

98.64%

86.97%

90.09%

70.49%

40.09%

    ≥5μm

100.0%

99.93%

99.90%

98.86%

98.36%

82.26%

76.66%

    ≥8μm

100.0%100.0%99.97%99.20%98.88%95.25%82.60%

    ≥10μm

100.0%100.0%100.0%99.58%98.39%98.18%89.42%

    ≥12μm

100.0%100.0%100.0%99.78%99.57%98.76%97.41%

    ≥25μm

100.0%100.0%100.0%100.0%100.0%99.34%99.14%


High Flow 03.pngHigh Flow 04.png

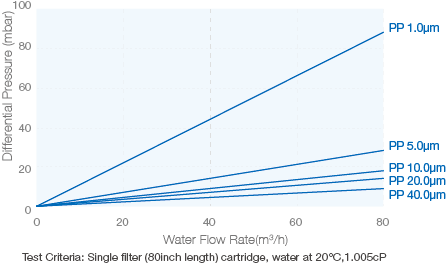

High Flow 05.pngHigh Flow 06.png



Filter Performance Comparison I

High Flow 08.png


Filter Performance Comparison II

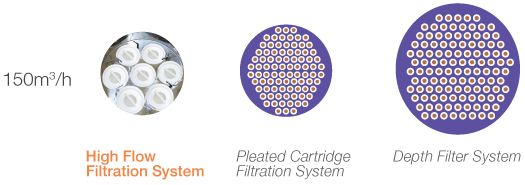

    Element and Filter Housing Comparison








    Time and Labor for Changeout
xj05 Time and Labor for ChangeoutHFPP150 Flow System can reduce 90% of the filter elements when compared to the conventional Ø2.5” System. This system is 2 to 3 times smaller than depth or pleated filter systems. The reduction in necessary filter elements and smaller system size decreases production downtime and maintenance cost.




End Cap Configuration

High Flow 07.png




Ordering Information



  Filter Media

Removal Ratings   Nominal LengthSeal Material

HFPP150

(PP Cage)
HF150NB

(PET Net)
HFM150
DSHF150
G1HF150
N1HF150
N2HF150
N3HF150
N4HF150
N5HF150
JL-150


  PP

0050=0.5μm1000=10.0μm10= 10"S=Slilicone-C

  GF

0080=0.8μm1500=15.0μm20= 20"

E=EPDM




0100=1.0μm2000=20.0μm30= 30"

V=Viton




0200=2.0μm4000=40.0μm40= 40"



0300=3.0μm7000=70.0μm




0500=5.0μm9000=90.0μm
