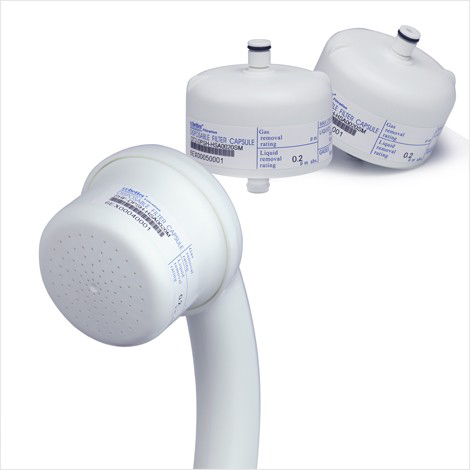

COMED Water Filters

Disposable water filter is designed to remove waterborne pathogens such as Legionella spp, Pseudomonas aeruginosain and Coliforms in hospital tap water.

As hospital tap water has been recognized as “the most overlooked, important, and controllable source of HAI”. And at-risk patients include surgical, burn, cancer, transplant, chronic lung disease and HIV infected as well as elderly and newborn are susceptible to infection through direct contact, ingestion, and inhalation of waterborne pathogens.

Cobetter disposable water filter is composed of double layer membranes and the asymmetric pre-filtration layer can provide abprotection to the sterilizing grade membrane and offer high flow rate. The filters have been validated on Brevundimonas diminuta according to ASTM F838 (bacteria challenge test) with a bacteria retention >107 /cm2 (sterilizing grade) for up to 31days.


Features and Benefits

  • Double-layered membrane provides excellent reliablity of sterilization
  • Built in Asymmetric pre-filter layer for longer life and lower filtration costs
  • Minimized size and easy to use.



Application

  • Surgical hand washing
  • Tooth brushing and oral care
  • Medical devices reprocessing and rinsing
  • Wound rinsing
  • Home care
  • Bathing and showering


Quality Standards

  • Tested with B.diminuta (ATCC19146) at 107 -1010 /cm²(>99.99999%)
  • All material passed USP Class VI
  • Each individual element is integrity tested (bubble point & diffusion Flow)
  • Each individual element is tracked by series number
    Manufactured under a quality management system certi cated to ISO9001:2000

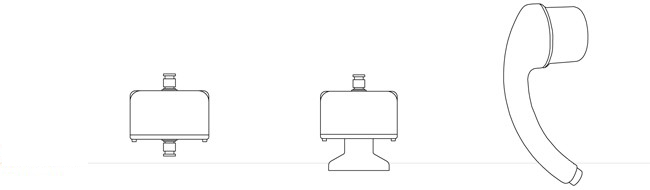

Specifcation & Drawing



Filter MediaPESPESPES
Support FleecePPPPPP
Length2.9"3.4"9.3"
Diameter2.8"2.8"3.2"
Inlet1/4" CPC1/4" CPC1/2" NPT
Outlet1/4" CPCShower HeadShower Head
Max.Filtration
Time
14/31Days14/31Days14/31Days
Flow Rates
(nominal)
6.0 L/min @1bar
13.0 L/min @3bar
17.0 L/min @5bar
6.0 L/min @1bar
13.0 L/min @3bar
17.0 L/min @5bar
7.0 L/min @1bar
14.0 L/min @3bar
18.0 L/min @5bar
Effective Filtration
Area
467 cm2467 cm2986 cm2
Max. Operating
Temperature
Continuous 60°C in fluent temperature @ 5bar
