Autoclaving Gas Filter

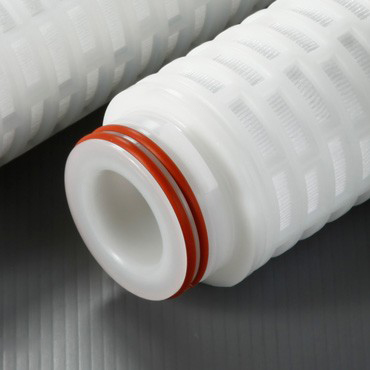

Cobetter autoclave gas filters are inherently hydrophobic PTFE membranes and thick thermal resistant polypropylene core. They are characterized with non-metallic ion release, dead-free corner and easy to clean. Consequently they are highly recommend for the sterile filtration of gas, air in biopharmaceutical industry.

Features and Benefits

  • Features and Benefits
  • Multiple formats are available
  • Exceptionally high flow rate with low pressure drop
  • Strong construction offers enhanced steam resistance

Applications

  • Transfer vessel
  • Single-use bioreactors
  • Filtration and bag assemblies

Regulatory Compliance

  • Manufactured under a quality management system certified to ISO9001:2008
  • 100% Integrity tested during production and supported with a validation guide for compliance with regulatory requirements
  • Each individual element is tracked by series number for traceability and easy identification
  • Specifaction
  • Performance
  • Ordering Information

Specifications

Filter Media
Pore Size		Hydrophobic PTFE
Membrane 0.2μm
Filter Structure ComponentsPolypropylene
Bubble Point≧0.11MPa(60%IPA)
Bacterial RetentionRetention of 107 CFU/cm2 Brevundimonas
diminuta (ATCC®19146) according to ASTM F838.
Max. Differential PressureForward: 5bar/21℃
2.1bar/80℃
Sterilization MethodCapsules: Autoclaved for 30ycles of
30minutes at 136℃.(No in-line steam sterilization)
Cartridges: Autoclaved for 150 cycles of 30 minutes at 136℃.
Bacterial Endotoxin<0.25EU/mL, according to LAL Test
Component Material ToxicityMeets USP Biological reactivity test for class VI-121℃ plastics

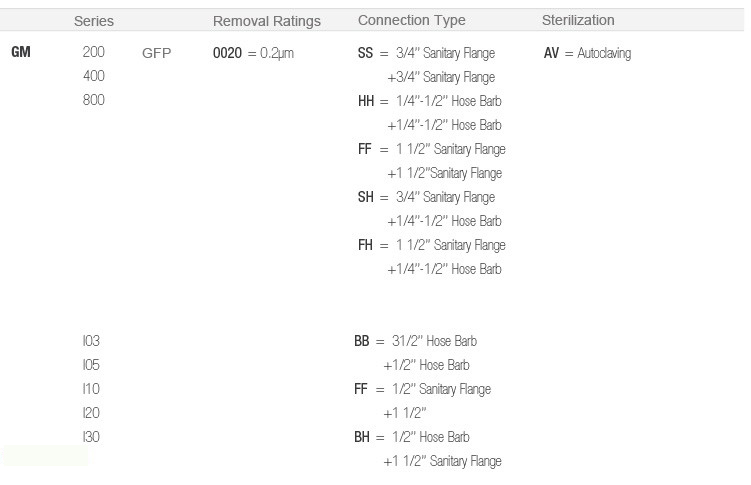

Ordering Information
