Home Filtration Solution for Biopharmaceuticals Sterile Filtration DN66 Filter
DN66 Filter

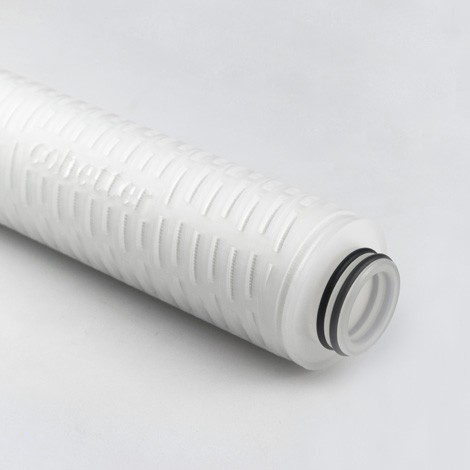

Cobetter DN66 filter cartridge is made of dual layer of inherently hydrophilic Nylon 66 membrane. They are designed for prefiltration, bioburden reduction , sterilization filtration and mycoplasma removal of biopharmaceutical and biological liquids.


Features and Benefits

  • Intrinsically water wettable
  • Enhanced filtration efficiency;
  • Low pressure drop and high flow rate;
  • Longer service life


Regulatory Compliance

  • Manufactured under a quality management system certified to ISO9001:2008
  • 100% Integrity tested during production and supported with a validation guide for compliance
  • with regulatory requirements
  • Each individual element is tracked by series number for traceability and easy identification


Available Formats

  • Filter Cartridges
  • Specifaction
  • Performance
  • Ordering Information

Specifications

Filter MediaDouble Layer Nylon 66
Support FleecePolypropylene
Filter Structure ComponentsPolypropylene
Max. Differential Pressure5 bar/ 21℃
4 bar/ 80℃
Bacterial Retention
0.2μm		Retention of 107 CFU/cm2 Brevundimonas diminuta
0.1μm(ATCC®19146) according to ASTM F838.
Mycoplasma Retention
0.1μm		Tested with A.laidlawii ATCC ®23206(LRV>7).
Bacterial Endotoxin<0.25 EU/mL, according to LAL Test
Component Material ToxicityMeets USP Biological reactivity test for
class VI-121℃ plastics
Sterilization MethodAutoclaved for 40 cycles of 30 minutes at 121℃.
In-line steam sterilization for
40 cycles of 30 minutes at 121℃.

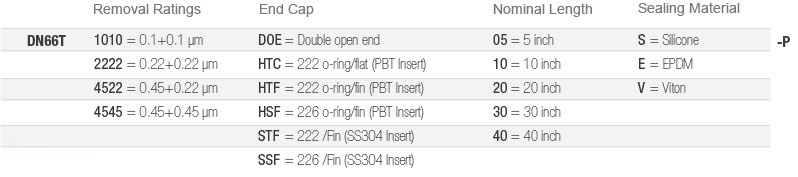

Ordering Information
