H-HF150 Series High Flow Rate Industrial Filter Housing


Cobetter H-HF150 Series Industrial Filter Housing is designed for HF150 Series Filter Cartridges, mainly used for large fluid (liquid/water) flow rate applications, especially for water treatment. It is designed for large flow rates, this filter housing only requires a small area for installation and is cost efficient and easy to operate when compared to Traditional cartridge filter housings.

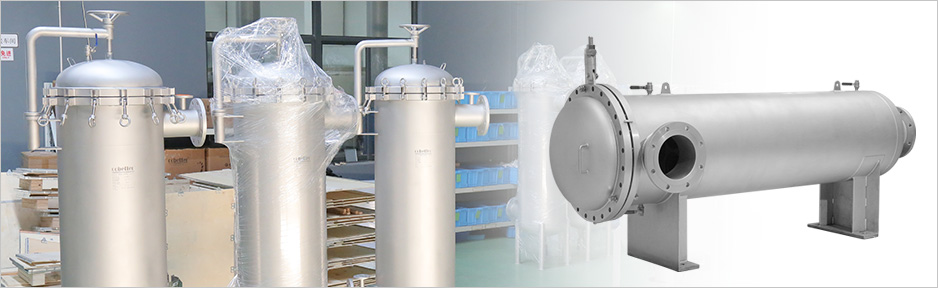

In addition, it is available in a horizontal or vertical configuration. A vertical configuration is normally composed of 10-round 40” filters. For large flow rates of over 1000m³/h, we recommend a horizontal configuration with 60” HF150 filter cartridges as it satisfies large flow rate applications and is relatively easy to change.


  HF150 housing 05.pngimage.png

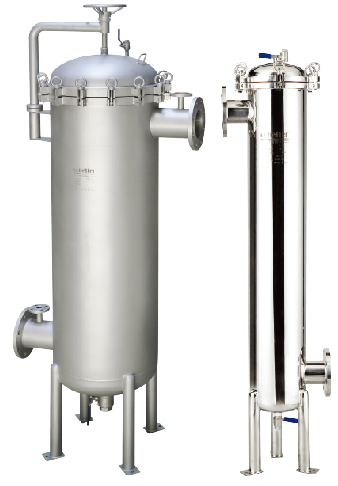

  HF150 housing 01.png



Surface Finish

  Polish Type

   Mirror Polish or

   Internal Electro-polished

  Surface Option

   Internal Ra: 0.6μm;

   External Ra: 0.8μm

Operating Conditions

  Max. Operating Pressure

   0.6 Mpa (6 bar)

   1.0 Mpa (10 bar)

  Max. Operating Temperature

   135°C(266°F)












Material of Construction

  Housing Body

   304 ; 316L

  Vent / Drain

   304 ; 316L

  Screw Bolt

   304

  Leg

   304

  O-ring / Gaskets

   Silicon, Viton, EPDM



Conditions

  Body Connection

   Swing Bolt / C-Clamp

  Inlet / Outlet

   135°C(266°F)

  Steam Sterilization

   G1/2”

  Vent

   G1”

  Drain

   M14*1.5

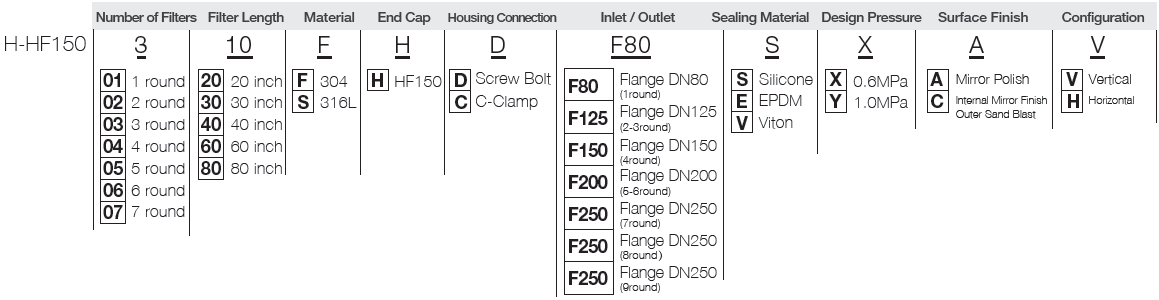

Ordering Information

H-HF150 housing 07.png




For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by info.industry@cobetterfilter.com   or leave a message.
