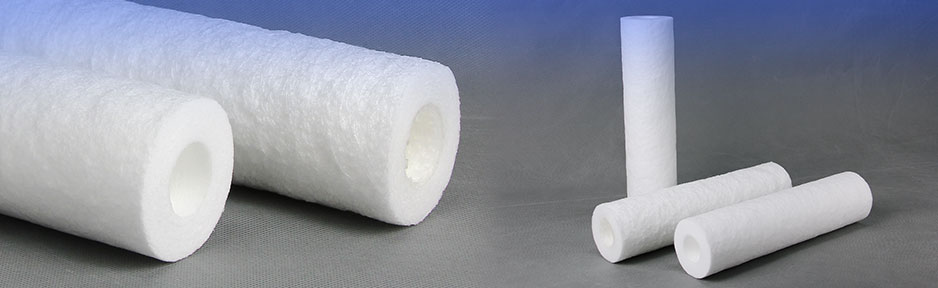

MBF-PP Series Polypropylene Melt Blown Cartridge Filter


Cobetter MBF-PP series PP melt blown cartridge filter apply the Latest technology, the whole filter has very hard mechanical properties, and the compression resistance is twice that of ordinary melt blown filter. It can be applied to some high viscosity and high solid content feed liquids. The melt blown cartridge filter process has a high dirt holding capacity and can with stand more impurities.

Operating Conditions

   Filter Media   PP
   End Cap / Core / Cage   PP
   Max. Operating Temperature   80°C
   Max. Differential Pressure   0.4 MPa / 21°C
   0.24 MPa / 80°C



Filter Dimensions

   Outer Diameter   63mm
   Inter Diameter   25mm
   Lenght   Langest 60"



Ordering Information

       Removal Ratings      Nominal Length   Seal Material

    MBF-PP

 0050=0.5μm   3000=30μm   05= 5"   S=Slilicone-C

   0100=1.0μm   4000=40μm   10= 10"   E=EPDM


0300=3.0μm7000=70μm20= 20"V=Viton


   0500=5.0μm   9000=90μm   30= 30"



1000=10μm120H=120μm40= 40"



   2000=20μm   150H=150μm   50= 50"





   60= 60"




















For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by info.industry@cobetterfilter.com   or leave a message.
