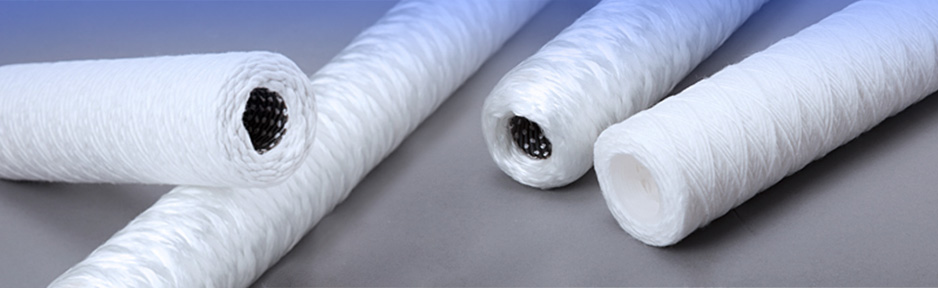

WDCC Series String Wound Cartridge Filter


The WDC Series string wire wound cartridge filter is made of textile dimensional thread (polypropylene, absorbent cotton thread, glass fiber, polyester) precisely wound on a porous (PP, stainless steel) high-strength skeleton according to a specific density, and has a honeycomb structure with outer and inner density.

Working Temperature

   Polypropylene (PP)   80°C
   Cotton wool (CO)   120°C
   Polyester (PET)   120°C
   Glass fiber (GF)   200°C


Working Characteristics

   Working Pressure Difference   0.1 bar
   Maximum Working Pressure Difference   4.0 bar

   Recommended Replacement
   Pressure Difference

   2.0 bar


Ordering Information

       Series      Removal Ratings      Center Rod   Length

 WDC-PP

  PP=Polypropylene   0050=0.5μm   3000=30μm   P = Polypropylene   0=Custom Made20=508mm-C

  CO=Pledget   0100=1.0μm   4000=40μm   S = 304 stainless steel   05=127mm30A=750mm

GF=Glass Fiber0300=3.0μm5000=50μmSL = 306L stainless steel10A=250mm30=762mm

  PE=Polyester   0500=5.0μm   7500=75μm
   10=254mm40A=1000mm


1000=10μm100H=100μm
20A=500mm40=1016mm


   1500=15μm   150H=150μm





   2000=20μm   200H=200μm





   2500=25μm














For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by info.industry@cobetterfilter.com   or leave a message.
