Degassing System
Degassing-System

Applied to inkjet ink production degassing to provide a complete production degassing integrated system and solve printing problems caused by dissolved bubbles in the ink.


Features and Benefits

· High degassing efficiency and high removal efficiency for dissolved bubbles

· Integrated system from production to degassing

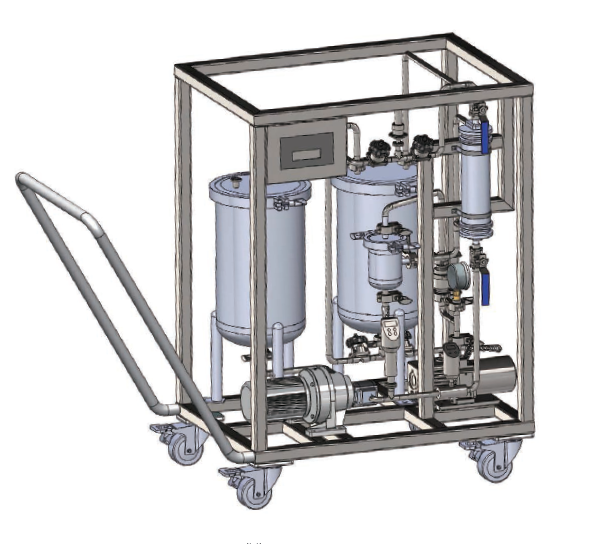

· Coming with a moveable cart, suitable for customers who prepares a new ink production line

· Highly customizeable system:

  Optional degas module for the actual ink production precess accordingly

· Equipped with dissolved oxygen detector:

  Online dissolved oxygen detection and flow rate changeable

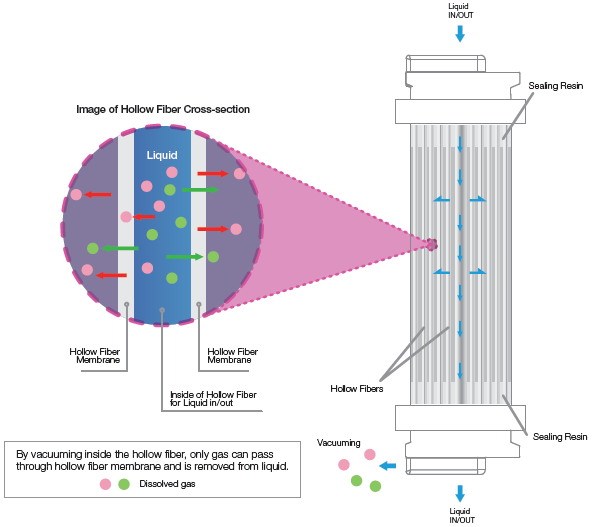

Degassing System-cbt-02.png

  • Specification
  • Performance
  • Ordering Information

Specification

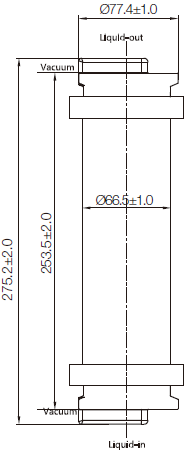

EX-DMD-4NC

EX-DMF-3NC / EX-DMF-1GC

Liquid Inlet/Outlet1/4"NPT3/4"NPT / 1GF
Vacuum1/4"NPT3/4"NPT / 1GF
Housing MaterialPPPP

Max. Working
Temperature/Pressure

50°C / 0.2MPa
50°C / 0.2MPa
Flow Rate0.1-0.7 m³/hr0.2-3.4 m³/hr


System Components

Degas ModulesMultiple degas modules can be selected in parallel or in series
Ink Eqiupment

Ink tank / pressure transmitter / gear pump and motor / ball valve / diaphragm valve

turbine flowmeter / dissolved oxygen detection system / ink pipeline


Vacuum EqiupmentVacuum pump / vacuum pressure transmitter / liqiud tank / check valve / vacuum pipeline
Auxiliary Equipmentrack / electric control cabinet (including display)

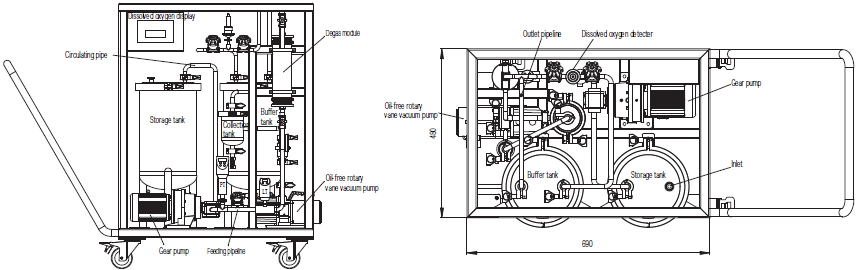

Single Degas Module System

Single-Degassing System-cbt.png

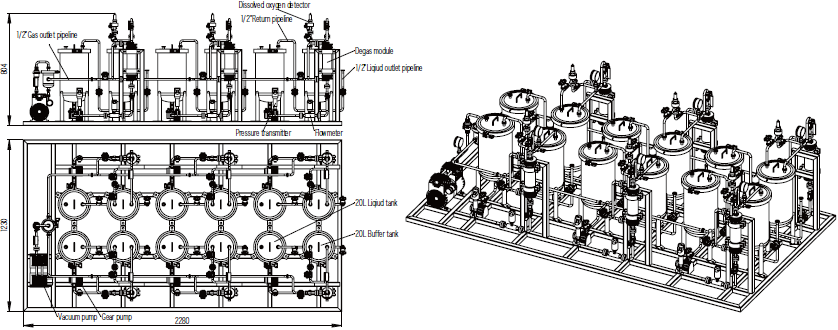

Multiple Degas Module System

Multiple Degas Module System-cbt.png

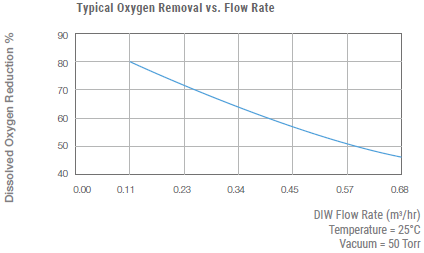

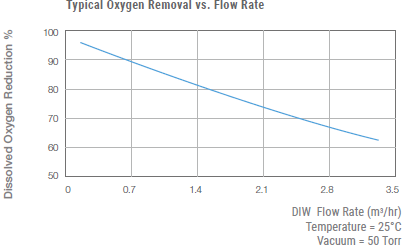

Degassing Efficiency


EX-DMD-4NC




EX-DMF-3NC/EX-DMF-1GC

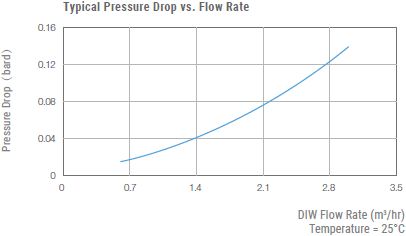

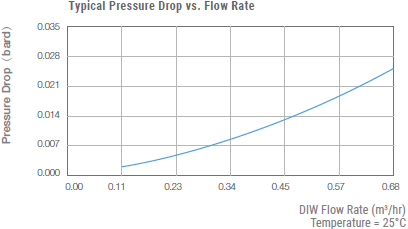

Pressure Drop / Flow Rate


EX-DMD-4NC




EX-DMF-3NC/EX-DMF-1GC
