Low Ion Release & Efficient Particles Removal Final Filter Cartridges
APSFJ Series

APSFJ Filter Cartridges are constructed of highly-polymeric asymmetric PESmembrane and widely used for DI and high-purity water filtration applications. Its features include low ion release and good conductivity recover capability to save inline flushing time. In addition, it provides efficient particle removal efficiency to ensure the quality of pure water.


  • Efficient Particle Removal

    Removal Ratings up to 0.02um ensure the quality of pure water. It can be used in the semiconductor industry. Additionally, it can be regarded as a replacement for ultrafiltration filters.

  • Low Leachable

    Low ion release and good recover conductivity save inline ushing time.

  • Each Element is Individually Integrity Tested

  • Large Dirt Holding Capacity and Longer Lifetime

    The asymmetric membrane structure provides high ow rates with lower differential pressures and a longer filter lifetime.

  • Pre-Rinsed with 18MΩ/cm Water Ensures Filter Cleanliness

  • Specifaction
  • Performance
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message

Operating Conditions

Filter MediaPES
End cap /Core/CagePP
Max. Operating Temperature80°C
Max. Differential Pressure0.4 MPa / 21°C
0.24 MPa / 80°C
Filter Area1.02 m² / 10 inch

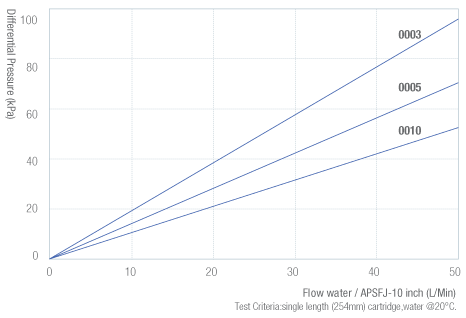

Flow Rate Characteristics

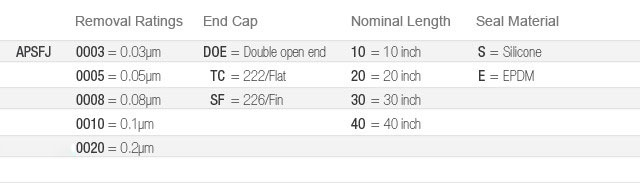

Ordering Information
