Medical

Hospital Point of Use Water Filter

Tap-and-Shower-Filters.jpg   Tap-and-Shower-Filters1.png


Waterborne bacterium colonizing biofilms are frequently found in hospital water systems. These biofilms usually contain pathogenic bacteria, such as Legionella spp., Pseudomonas aeruginosa, and Coliforms. Therefore, many medical organizations and hospitals contribute to reducing the risk of biofilms by conducting water management program.


240px-Legionella_pneumophila_01.jpgLegionella pneumophila  thriving in the warm water conditions can often be found in hospital water systems including central storage areas (e.g. water tanks) and peripheral water outlets. Legionella is able to result in Legionnaires’disease --- a potentially fatal form of pneumonia.
220px-Pseudomonas_aeruginosa_SEM.jpgPseudomonas aeruginosa is a multidrug resistant and intrinsically advanced antibiotic resistance pathogen also found in hospital water systems. P. aeruginosa is associated with hospital-acquired infections, such as pneumonia, sepsis syndromes, wound and skin infections.

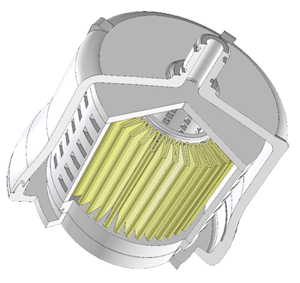

Cobetter Point of Use filter is designed as Legionella filter and Pseudomonas filter for removing waterborne pathogens in healthcare facilities (hospitals and clinics). The infection control filters use 0.2μm double-layer PES membrane with an asymmetric pre-filtration layer for longer service life and lower filtration cost.The filter meet the ASTM F838 with a bacteria retention>107/cm2 (sterilizing grade). The filter is also easily installed and replaced on faucets.


Vulnerable and immunocompromised patients, elderly, and newborn are easy to be infected by contact with water in medical centers. Therefore, the POU filter is an effective and economical way for hospital Infection control and uses as Legionella filter and Pseudomonas filter.




Typical Applications
   ·  ICUs

   ·  Operating Room Hand Washing

   ·  Bone Marrow Transplant Units

   ·  Hematology / Oncology / Transplantation / Burn units

   ·  Wound Rinsing, Neonatology

   ·  Endoscopic Reprocessin

   ·  Birthing Pools

   ·  Patient Bathing and Showering Areas

   ·  Kitchen (for food preparation and drinking water provision)

   ·  Geriatric Departments

   ·  Infection Control

   ·  Legionella Filter

   ·  Pseudomonas Filter.


Product Types

Innovative Tap Water Filters


Materials of Construction

  Filter Media

Polyethersulfone

  Structural ComponentsPolyethersulfone
  Removal Rating0.2 μm
  Nominal Dimensions
  Maximum Length84mm (3.3")
  Body Diameter84mm (3.3")
  Flow Rates

8.6 L/min @1bar

19.0 L/min @3bar

25.5 L/min @5bar

  Maximum Operating Temperature70 °C (158 °F)
  Effective Filtration
  Area
5.0 bar / 60°C (73psi /140 °F)
  Effective Filtration
  Area
930 cm2 (144in2)
  Maximum Lifetime

62days


Connections

  Inlet1/4" CPC
  OutletShower Head
  Disinfection

Compatible with common surface and systemic disinfection methods.


OT Series Water Filters


Materials of Construction

  Filter MediaPolyethersulfonePolyethersulfonePolyethersulfone
  Structural components

Polypropylene

Polypropylene

Polypropylene

  Removal Rating0.2μm0.2μm0.2μm


Nominal Dimensions

  Maximum Length75mm (3.0")73mm (2.9")88mm (3.5")
  Body Diameter

71mm (2.8")

72mm (2.8")

72mm (2.8")

  Flow Rates

3.9 L/min @1bar

9.5 L/min @3bar

12.6 L/min @5bar

3.7 L/min @1bar

9.2 L/min @3bar

12.3 L/min @5bar

3.6 L/min @1bar

9.2 L/min @3bar

12.2 L/min @5bar

  Maximum Temperature

70°C(158°F)

70°C(158°F)

70°C(158°F)

  Maximum Pressure

5.0 bar / 60°C (73psi /140 °F)

5.0 bar / 60°C (73psi /140 °F)

5.0 bar / 60°C (73psi /140 °F)

  Effective Filtration Area

467cm2 (72 in2)

467cm2 (72 in2)

467cm2 (72 in2)

  Maximum Lifetime

31days

31days

31days


Connections

  Inlet

1/4" CPC

14" CPC

1/4" CPC

  Outlet

Smooth Outlet

14" CPC

Shower Head

  Disinfection

Compatible with common surface and systemic disinfection methods.



Shower Filters


Materials of Construction

  Filter Media

Polyethersulfone

  Structural Components

Polypropylene

  Removal Rating0.2μm


Nominal Dimensions

  Maximum Length

236mm (9.3")

  Body Diameter

83mm (3.2")

  Diameter

  Flow Rates

9.8 L/min @1bar

20.7 L/min @3bar

27.0 L/min @5bar

  Maximum Temperature

70°C (158°F)

  Maximum Pressure

5.0 bar / 60°C (73psi /140 °F)

  Effective Filtration Area

986 cm2 (153 in2)

  Maximum Lifetime

31days


Connections

  Inlet

1/2" NPT

  Outlet

Shower Head

  Disinfection

Compatible with common surface and systemic disinfection methods.




For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message
