Medical

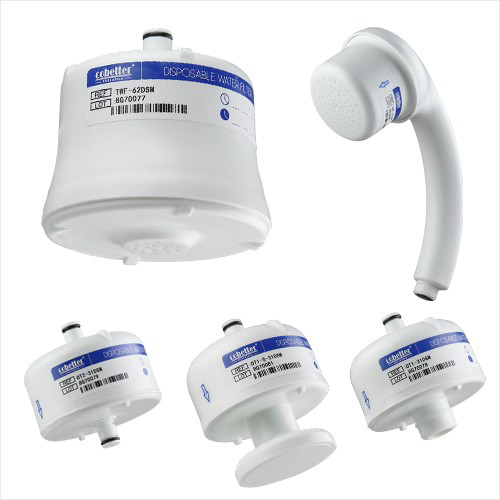

Home Medical Water Filtration Point of Use (POU) Filters Hospital POU filter
Hospital POU filter

Features and Benefits

  • 0.2µm double-layer PES membrane provides reliable sterilization.
  • Small size that is easy to use and replace.
  • An asymmetric pre-filter layer for extending lifetime and reducing cost.



Quality Standards

  • Tested with B.diminuta (ATCC19146) at 107-1010/cm2(>99.99999%)

  • All material passed USP Class VI

  • Each individual element is integrity tested
  • Full tracking and tracing label by series number for easy replacement


  • Specification
  • Drawing
  • Biological Satety

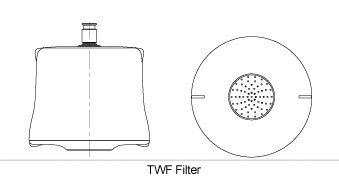

Innovative Tap Water Filters


Materials of Construction

Filter MediaPolyethersulfone
Structural ComponentsPolyethersulfone
Removal Rating0.2 μm
Nominal Dimensions
Maximum Length84mm (3.3")
Body Diameter84mm (3.3")
Flow Rates

8.6 L/min @1bar

19.0 L/min @3bar

25.5 L/min @5bar

Maximum Operating Temperature70 °C (158 °F)
Effective Filtration
Area		5.0 bar / 60°C (73psi /140 °F)
Effective Filtration
Area		930 cm2 (144in2)
Maximum Lifetime

62days


Connections

Inlet1/4" CPC
OutletShower Head
Disinfection

Compatible with common surface and systemic disinfection methods.

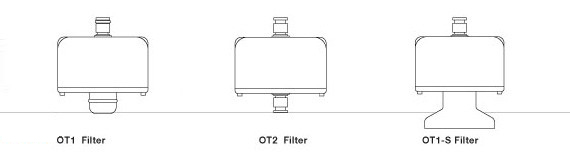

OT Series Water Filters


Materials of Construction

Filter MediaPolyethersulfonePolyethersulfonePolyethersulfone
Structural components

Polypropylene

Polypropylene

Polypropylene

Removal Rating0.2μm0.2μm0.2μm


Nominal Dimensions

Maximum Length75mm (3.0")73mm (2.9")88mm (3.5")
Body Diameter

71mm (2.8")

72mm (2.8")

72mm (2.8")

Flow Rates

3.9 L/min @1bar

9.5 L/min @3bar

12.6 L/min @5bar

3.7 L/min @1bar

9.2 L/min @3bar

12.3 L/min @5bar

3.6 L/min @1bar

9.2 L/min @3bar

12.2 L/min @5bar

Maximum Temperature

70°C(158°F)

70°C(158°F)

70°C(158°F)

Maximum Pressure

5.0 bar / 60°C (73psi /140 °F)

5.0 bar / 60°C (73psi /140 °F)

5.0 bar / 60°C (73psi /140 °F)

Effective Filtration Area

467cm2 (72 in2)

467cm2 (72 in2)

467cm2 (72 in2)

Maximum Lifetime

31days

31days

31days


Connections

Inlet

1/4" CPC

14" CPC

1/4" CPC

Outlet

Smooth Outlet

14" CPC

Shower Head

Disinfection

Compatible with common surface and systemic disinfection methods.



Shower Filters


Materials of Construction

Filter Media

Polyethersulfone


Structural Components

Polypropylene

Removal Rating0.2μm


Nominal Dimensions

Maximum Length

236mm (9.3")


Body Diameter

83mm (3.2")

Diameter

Flow Rates

9.8 L/min @1bar

20.7 L/min @3bar

27.0 L/min @5bar

Maximum Temperature

70°C (158°F)

Maximum Pressure

5.0 bar / 60°C (73psi /140 °F)

Effective Filtration Area

986 cm2 (153 in2)

Maximum Lifetime

31days


Connections

Inlet

1/2" NPT

Outlet

Shower Head

Disinfection

Compatible with common surface and systemic disinfection methods.





Innovative Tap Water Filters

Part No.DescriptionPackaging
TWF-62DSM

PES 0.2μm Filter, 62days,

1/4" CPC Inlet, Shower Head Outlet

40 units/pkg


OT Series Water Filters

Part No.

Description

Packaging

OT1-31DSM

PES 0.2μm Filter, 31days,

1/4" CPC Inlet, Smooth Outlet

40 units/pkg

OT2-31DSM

PES 0.2μm Filter, 31days,

1/4" CPC Inlet, 1/4" CPC Outlet

40 units/pkg

OT1-S--31DSM

PES 0.2μm Filter, 31days,

1/4" CPC Inlet, Shower Head Outlet

40 units/pkg


Shower Filters

Part No.

Description

Packaging

SHF-31DSM

PES 0.2μm Filter, 31days,

1/2" NPT Inlet, Shower Head Outlet

40 units/pkg
