Home Ink Jet Filter Housing


Lab Testing Line

Optimized System for Ink Jet R&D Laboratory

lab testing line S-SIF I-cbt.jpg


S-SIF I

· Single cartridge housing applies Cobetter 126 filter cartridge.

· Low hold-up volume for minimal fluid loss.

· Inlet,outlet ,vent and drain ports are conveniently located on the housing system.

· Electro-polished finish for easy clean-up. Internal Ra 0.3μm, External Ra 0.4μm.

· Easy to clean, easy to drain.


Low Volume Production Line


  low volume line S-SIF II-cbt.jpg

S-SIF II

· Inverted Design

· Easy to Clean

· Easy to Drain Contaminants

low volume line S-SIF III-cbt.jpg





S-SIF III

· Design for 100L/Hr Flow Rate.





Operating Conditions

    Item

    Description

    Specification

    Pump

    Ingersoll-Rand,

    Aro Diaphragm Pump

    Stainless Steel DN25

    Housing

    Cobetter H-SCF-1

    Liquid Filter Housing

    3 stages, 1-round,

    5/10 " length

    Tube

    Fine Polishing Stainless Steel

    1 " (DN25)

    Connection

    Tri-clamp    1 " (DN25)

* 3 Stages of Filtration; Housing material SS316L

* Surface Finish: Electro-polished, Internal 0.3μm / External 0.4μm




Stainless Steel Filter Holder  H-DMF

Batch Testing Sanitary-grade, Pressure Filtration

H-DMF-cbt.jpgCobetter H-DMF Stainless Steel Disc Filter Holders have been designed for ink jet ink filtration. This kind of housing provides higher safety than PP membrane holder and glass membrane holder.



Material of Construction

Polishing Type

Mechanical Polished / Electro-polished

  Surface Option

Internal 0.3μm / External 0.4μm



Ordering Information

   Series

Number of MembraneCartridge LengthMaterialInlet/Outlet Seal Material

   H-DMF



1= Single Layer

2= Double Layer

47=47mm

60=60mm

90=90mm

142=142mm

150=150mm

200=200mm


A= 304

B= 316L

T= Tri-clamp

S=Slilicone

E=EPDM

V=Viton

P=Encapsulated Viton




Mass Production Line

Design for 1500L/Hr flow rate

    SIF02-cbt.png       SIF01-cbt.png

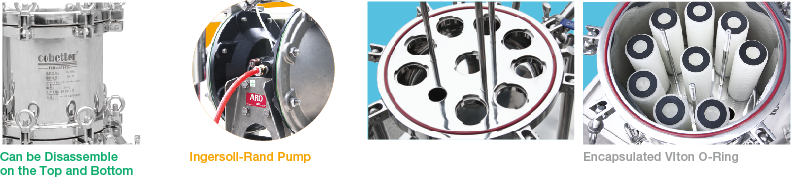

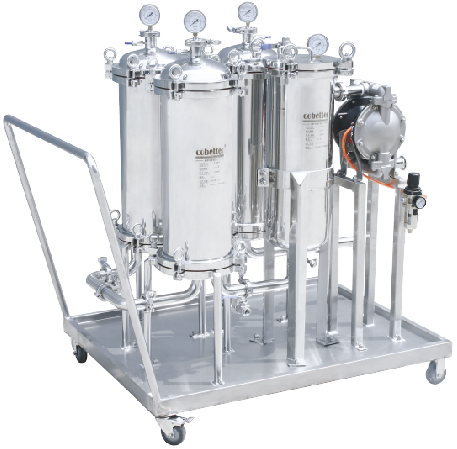

                                  S-SIF IV                                                                                                 S-SIF V




·  4 Stages of Filtration; Housing Material SS316L
·  Surface Finish; Electro-polished; Internal 0.38μm/External 0.4μm
·  Max flow rate for this system can reach 3000L/Hr.



Operating Conditions

    Item

    Description

    Specification

    Pump

    Ingersoll-Rand, Aro Diaphragm Pump

    Stainless Steel DN25

    Housing

    Cobetter H-TBF Top Inlet Bag Housing

    Cobetter H-SCF Liquid Filter Housing

    1 stage: single bag

    2 -4 stages: 9-Round /10" Lengt

    Tube

    Fine Polishing Stainless Steel

    1.5 "

    Connection

    Tri-clamp    1.5 "



Filtration Before Filling

Removal of agglomerate again to ensure ink quality.


·  1 Step Filtration

·  Cobetter H-SCF Filter Housing Series
