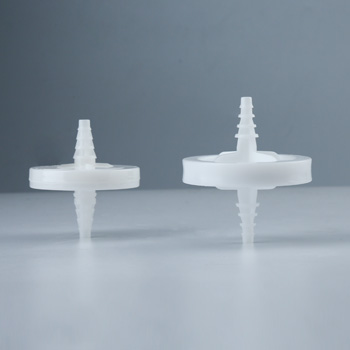

Disposable Vent Filter


Disposable vent filters or called gamma stable filters ,gamma compatible vent filters ,are consist of 0.2μm hydrophobic PTFE filter media,features bacteria retention for air venting and gas filtration.Inherently hydrophobic characteristic and high porosity makes the filters perfect resistance to particulates,bacteria and water while with high air/gas permit under very low differential pressure.Stepped hose barb connectors make them very flexible to connect with different size tubes.Very light weight can prevent tubes from bending.They can be either gamma irradiated or autoclavable,which are widely used in single use system and assembling,such like bioreactor,fermenter,cell flasks,carboys etc.


Features and Benefits

  • Exceptionally high flow rate with low pressure drop
  • Integrity tested to provide a high level of confidence
  • Can be sterilized by gamma irradiation or autoclaving




Applications

  • Venting bioreactors
  • Fermentation tanks
  • Culture vessels
  • Carboys
  • Filling machines
  • Autoclaves
  • Transfer vessels






   SFU-GM


   Bricap® 42


   Bricap® V5D


   Bricap® V5A

   Filter Media

Hydrophobic PTFE on a PET support

   Pore Size   0.2μm   0.2μm   0.2μm   0.2μm
   Housing   Gamma stable PP   Gamma stable PP   Gamma stable PP   Gamma stable PP
   Filtration Area   0.72cm² / 3.4cm² / 4.5cm²   13.8cm²   20cm²   20cm²
   Overall Length   19.0mm / 22.5mm / 26.1mm   47.0mm   69.5mm   83.5mm
   Diameter   18mm / 30mm / 35mm   56.0mm   64.0mm   73.0mm

   Inlet/Outlet
   Connections

   Inlet: Female luer-lok
   Outlet: Male luer slip

   1/4"-3/8" Hose barb   22.6   22.6

   Max. Operation
   Pressure

   6.0bar(87psi)@20°C   2.4bar(35psi)@20°C   4.2bar(61psi)@20°C   2.4bar(35psi)@20°C

   Typical Air Flow
   Rate (20°C)

   13mm:

   0.5L/min@0.2bar(3psi)
   25mm:

   2.1L/min@0.2bar(3psi)
   33mm:

   2.9L/min@0.2bar(3psi)

   6.3L/min@0.2bar(3psi)   9.6L/min@0.2bar(3psi)   9.0L/min@0.2bar(3psi)
   Bubble Point   ≥ 1.1bar (60% IPA)   ≥ 1.1bar (60% IPA)   ≥ 1.1bar (60% IPA)   ≥ 1.1bar (60% IPA)
   Sterilization

   Gamma irradiation
   25kGy recommended

   - Gamma irradiation
     25kGy recommended
     50kGy maximum

   - Gamma irradiation

   - Gamma irradiation
     25kGy recommended
     50kGy maximum

   - Gamma irradiation

   - Gamma irradiation
     25kGy recommended
     50kGy maximum

   - Gamma irradiation

   Biological SafetyMeets USP Biological Reactivity Test, in vivo, for Class VI-121°C Plastics.




Ordering Information

   Cat. No.   Material   Pore Size   Sterility
   SFM13PT0022-GM   PTFE
   0.2 μm
   Gamma-irradiated
   SFM25PT0022-GM   Gamma-irradiated
   SFM33PT0022-GM   Gamma-irradiated
   SS47DISC-GM-PTFE0020L   Gamma-irradiated
   SS47DISC-PTFE0020L   Autoclavable
   64DISC-GM-PTFE0020L   Gamma-irradiated
   64DISC-PTFE0020L   Autoclavable
   AV50-GM-PTFE0020L   Gamma-irradiated
   AV50-PTFE0020L   Autoclavable










For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message
