Cobetter Absoguard Filter Cartridge is an all-polypropylene pleated depths filter. It combines uncalended meltbown and nano fiber media, provides great efficiency with high particles retention. Cobetter Absoguard Filter is an good choice for a wide range of digital printing ink jet inks filtration, especially for pre-filtration of dye-based inks.
· Two-Layer pleated construction ---provides high flow rate and extended service
· Nano fiber media---provides great removal of contaminants such as gels and agglomerates.
· All-polypropylene construction---great compatibility with most ink systems and can be applied
over a wide range of inks.
Material of Construction
| Filter Medium | Multiple Layers Melt-Blown Polypropylene |
| Support Layer | Polypropylene |
| Core/Cage/End Caps | Polypropylene |
| O-Ring | Please refer to ordering information |
Operating Conditions
| Maximum Temperature | 80°C |
| Max.Differential Pressure | 4.0 bar / 21°C 2.1 bar / 80°C |
| Steaming Sterilize(Autoclave) | null |
| Inline Steaming Sterilize | null |
| Hot Water Sterilize | null |

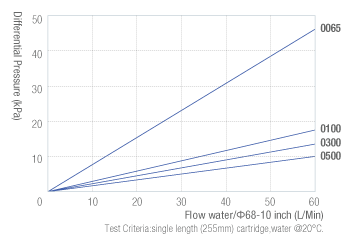

Flow Rate Characteristics
Retention Characteristic
| Pore size | APP 0.5 | APP 1.0 | APP 3.0 | APP 5.0 | |||
| ≥1μm | 99.99% | 99.78% | 99.78% | 90.35% | |||
| ≥2μm | 100% | 99.99% | 95.45% | 91.78% | |||
| ≥5μm | 100% | 100% | 99.93% | 98.19% | |||
| ≥10μm | 100% | 100% | 100% | 99.99% | |||
| ≥12μm | 100% | 100% | 100% | 100% |

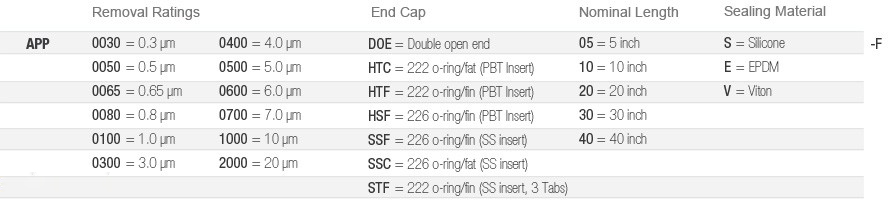

Ordering Information
