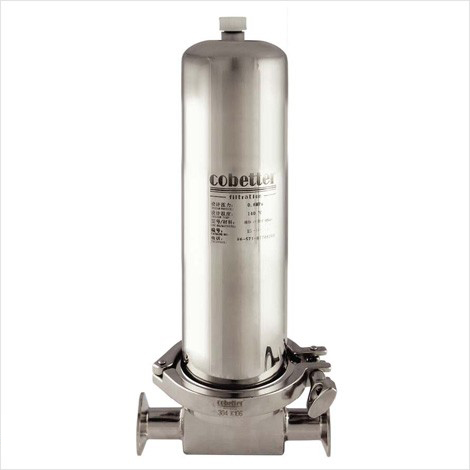

RK12 Single Round Filter Housing

RK12 housing, used with RK12 filter, has a seamless structural design which makes it easy to clean.

Drain completely, no residue.

Electro polishing can also be selected at the same time as mechanical polishing, with a surface roughness up to 0.3 μm.



Feature Advantages

Suitable for most filtration requirements of slurry coating lines.

It can make the direct replacement of stainless steel mesh housing, which provides the easy installation.



  • Specification
  • Performance
  • Ordering Information


Materials of Construction

Shell304 / 316L
Drain304 / 316L
Removal Ratings304
SealEPDM
Length10" / 20"





Operating Condition

Design Pressure0.6 MPa(6Bar)
Operating Temperature135°C
Design Temperature140°C




Ordering Information

    MaterialFilter TypeSeal

H-SCF

A=SUS30401=RK12-05E=EPDM



B=SUS316L02=RK12


04=RK12-20
