H-CCF Single-Round
Industrial Liquid Filter Housing

Casting and Easy Installation

H-CCF Filter Housing features a top-inlet and top-outlet, which allows for easy fitting with various connections and adaptors.

The housing body is sanitary grade and has a finished polishing of Ra < 0.6μm. This makes it suitable for various applications. Since the housing is a compact structure, the top of the filter housing can be fixed to the connection tube. To replace the filter, please twist the body. This ensures that  there is no liquid spillover during the replacement process.

In addition, the drain valve located on the bottom of the filter housing allows for easy drainage.

Design Features

  • Top inlet and top outlet can be connected by the tube
  • No liquid spillover when replacing the filter cartridges
  • Drain valve on the bottom is easy to drain
  • Design allows for safe sealing
  • Specification

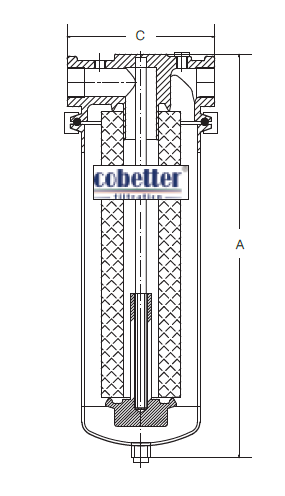

  • Drawing
  • Ordering Information
Surface FinishPolishing TypeBase：Cast
Housing body：Mechanical Polished
Surface OptionInternal Ra: 0.3μm or External Ra: 0.4μm
Material of
Construction		All surfaces304 / 316L
Drain304 / 316L
O-ring / GasketsSilicon, Viton, EPDM, PTFE
Operating
Conditions		Max. Differential Pressure0.6Mpa (6bar)
Max. Temperature130 °C (266°F)
ConnectionBody ConnectionTri-clamp
Inlet / Outlet3/4”FNPT
Drain1/2”NPT




1 round 5 ”1 round 10 ”1 round 20 ”
A250375625
C110110100

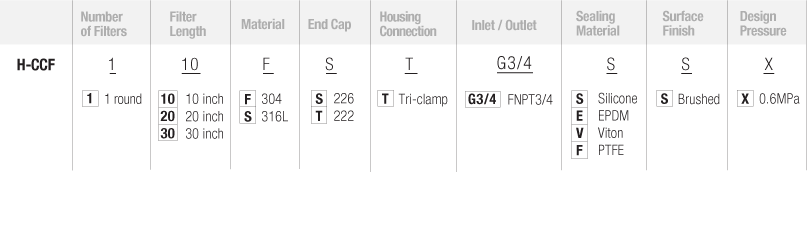

OrderingInformation
