H-SCF / SDF / SEF / SFF Multi-Round Sanitary Housings
High Flow Rate Sanitary Grade

H-SCF Multi-Round Sanitary Filter Housing designed for liquid filtration with varying flow rates.

Flow redesign with flow pattern of side-in and bottom-out reduce cost when compared to bottom-in bottom-out flow pattern. In addition, top-inlet opening eliminates the need to move the housing body while installing the filter elements, thus reducing filter change-out time.

Strongly recommended for use in life science filtration applications, it meets sanitary requirements and GMP standards. Features include mechanical polishing with a Ra of 0.3μm, easy-to-clean, and thorough drainage, which eliminates concerns about remaining liquids. In addition, the filter housing is available with a detachable plate for thorough cleaning with strict cleaning requirements.

It is also available in an electro-polish finish for filter housings with 12 rounds or less.

Configurations

H-SCF:

bottom-opening; fixed plated; bottom-in bottom-out flow pattern

H-SDF:

top-opening and bottom-opening; fixed plate; bottom-in bottom-out out flow pattern

H-SEF:

bottom-opening; detachable plate; bottom-in bottom-out out flow pattern

H-SFF:

top-opening and bottom-opening; detachable plate; bottom-in bottom-out out flow pattern


  • Specification
  • Drawing
  • Ordering Information

Surface Finish

Polish Type

Mirror Polish or

Internal Electro-polished

Surface Option

Internal Ra: 0.3µm or

External Ra: 0.4µm

Operating Conditions

Max. Operating Pressure1.0 Mpa (10 bar)
Max. Operating Temperature130°C(266°F)
Steam SterilizationIn-situ / Autoclave @ 121°C / 30 min

Material of Construction

Housing Body304 or 316L
Vent / Drain304 or 316L
Vent Clamp304
Eyebolt304
Leg304
O-ring/GasketsSilicon, Viton, EPDM

Connection

Body ConnectionFlange (Eyebolt)
nlet / OutletTri-clamp
Vent

Tri-clamp; ID 4mm and

for 8mm tube

Pressure Gauge1.5 inch Tri-clamp

Drawing

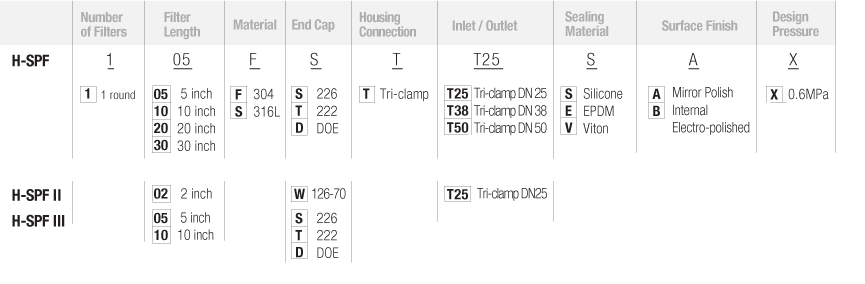

OrderingInformation
