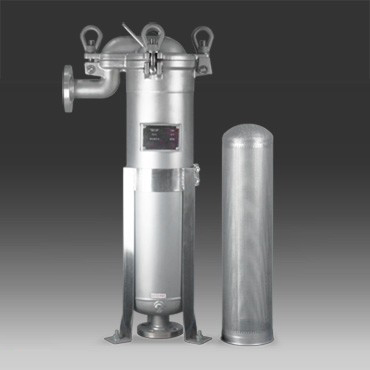

Top-Inlet Bag Filter Housing H-TBF
Recommended Configuration,
  • H-TBF is our recommendation for single bag filter housings as it’s suitable for various filtration requirements.
  • With a Top-Inlet design, liquid flows into the filter housing from the side inlet to the top of the filter, which helps to establish a pressure balance and reduction and free from turbulence, thus, protecting the filter bag.
  • During filtration, liquid flow directly from the top to the bag filter, this keeps volume low above the bag filter.The lid is pressed firmly against the bag filter, thus, providing excellent sealing.
  • Mechanical polish and sand blast are available according to customer’s requirements.
  • Specification
  • Drawing
  • Ordering Information

Material of Construction


Polish TypeMirror Polish /
Sand-Blasted /
Wire Drawing
Max. Pressure1.0 Mpa
Max Temp.150°C
MaterialSS304 or SS316L
Inlet / OutletFlange / Tri-Clamp / Thread



H-TBF  顶入式袋式过滤器.png

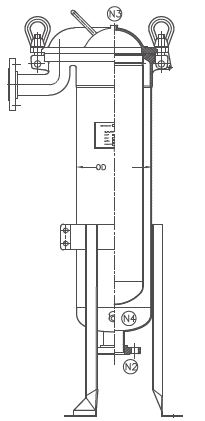

Drawings & Dimensions

NO.1NO.2
Total Height7421130
Diameter219219
nlet to Ground549938
Outlet to Ground150150

OrderingInformation
