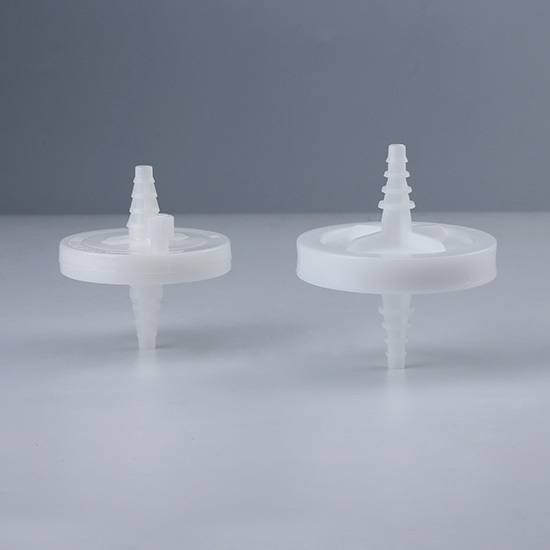

Aegivast ACE Filter Hydrophobic Filter with High Retention Rates
Gas Filtration Filter Series

Features

  • High retention rates

  • Low pressure differential

  • Efficient mycoplasma, bacteria and particulate retention





Applications

  • Vent Filters for fermentors, tanks, etc.

  • Sterile-grade filtration for compressed air, oxygen, nitrogen, etc.





  • Specification
  • Performance
  • Ordering Information

Operating Conditions


Max. Temperature80°C

Max. Differential Pressure

0.24 MPa / 25°C
0.42 MPa / 25°C (noly for V50D)




Materials of Construction


Filter TypeBricap SFU13 / SFU25 / SFU33Bricap V42 / V50A / V50D

Membrane

Hydrophobic polytetrafluoroethylene(PTFE)

Support LayerPolyester (PET)Polyester or Polypropylene (PET/PP)

Capsule Shell

Polypropylene (PP)

Polyester or Polypropylene(PET/PP)

Core/Cage /End cap/ ShellPolypropylene(PP)

Polypropylene(PP)

Removal Ratings

0.2 μm







Effective Filtration Area


Bricap SFUBricap V

SFU13 : 0.72 cm²

V42 : 13.8 cm²



SFU25 : 3.4 cm²V50A : 20 cm²

SFU33 : 4.5 cm²

V50D : 20 cm²














Sterilization Capability


  ·  Bricap SFU13 / SFU25 / SFU33 Disc : Autoclave, Gamma Irradiation or Pre-sterilization optional

  ·  Bricap V42 / V50A / V50D Disc: Autoclave (130°C, 30min, 20 times), Gamma irradiation or Pre-sterilization
