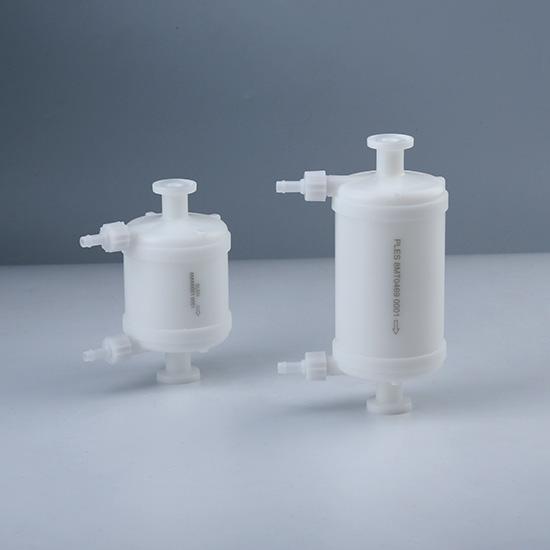

Corevital SMD Filter High Flow Rate, Low Protein Binding Hydrophilic Sterile Filter
Sterile-Grade Filters

Features

  • High flow rates

  • Low protein binding

  • Efficient bacteria and particulate retention




Applications

  • Sterilize filtration of cell culture medium

  • Ophthalmic solution

  • Buffer filtration

  • Filtration of cell culture medium

  • Filtration of blood products/serums

  • Sterile filtration of intermediate products

  • Pre-column / ultra-filtration protection

  • Sterile filtration of terminal products

  • Filtration of colloids / Viscous liquids






  • Specification
  • Performance
  • Ordering Information

Operating Conditions


Max. Temperature80°C

Max. Differential Pressure

0.55 MPa / 25°C
0.1 MPa / 80°C




Materials of Construction


Filter TypeBricap C/D/L/TCartridge

Membrane

Polyvinylidene fluoride (PVDF)

Polyvinylidene fluoride (PVDF)

Core/Cage/End CapPolypropylene (PP)Polypropylene (PP)

Capsule Shell

Polypropylene (PP)

-

O-ring-

Silicone/EPDM/Viton/PTFE

Capsule Vent O-ring

Silicone

-

Removal Ratings0.2μm/ 0.2+0.1μm/ 0.45+0.2μm/ 0.65+0.2μm




Biological Safety


Bio-compatibility

Meet the requirement of USP<87>In Vitro Cytotoxicity Test;

Meet the criteria of the USP<88>Biological Reactivity Test

for Class VI-121°C plastics

Endotoxins< 0.25 EU/ml





Effective Filtration Area


BriScale A50Bricap C/DBricap LBricap TCartridge

A50: 20 cm²

C01: 180 cm²

L02: 0.12 m²

T10: 0.55 m²

5" : 0.28 m²


C02: 420 cm²L03: 0.16 m²T20: 1.1 m²10" : 0.55 m²


C03: 660 cm²

L05: 0.28 m²

T30: 1.65 m²

20" : 1.1 m²


D01: 350 cm²L10: 0.55 m²

30" : 1.65 m²



L20: 1.1 m²


40" : 2.2 m²



L30: 1.65 m²





Sterilization Capability


Sterilization Method/Filter FormatBriScale Disc, Bricale C/ L / TBricap DCartridge

Gamma-irradiation

25-45 Kgy

/

/

Autoclave (126°C) applies only to

Gamma-compatible package

5 cycle, 30min//

Autoclave (130°C) applies only to

Atoclave package

25 cycle, 30min

25 cycle, 30min

25 cycle, 30min

SIP (135°C) applies only to cartridge//

25 cycle, 30min
