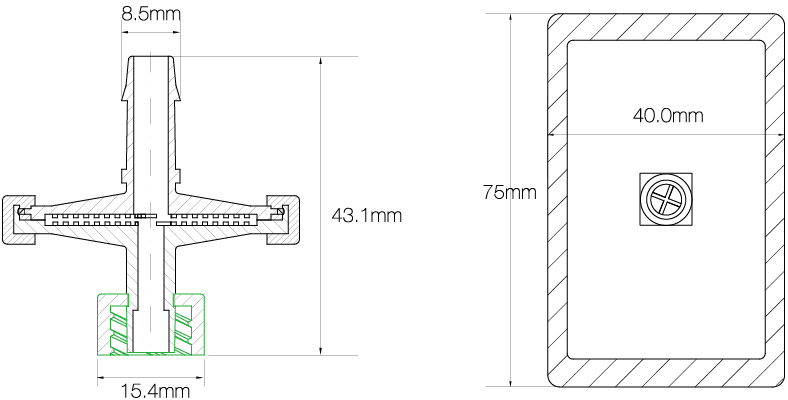

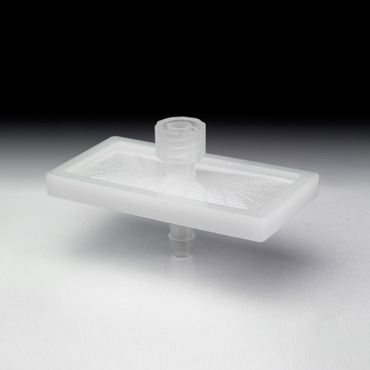

4075 FX Square Filter is an innovative design to meet the high-speed printing requirement in digital inkjet printer. The unique rectangular design is easier to layout, especially when the space is at a premium in front of the printhead.

Especially for the StarFire 1024 printhead users, like digital inkjet ceramic printer, dyeing machine, advertising printer, UV flatbed printer and so on.

Feature

· Creatively Adopt Square Design and Control the Width Same with Printhead Width

· High Flow Design with 20 cm² filtration area and 70ml/min flow rate(viscosity 10 cps, pressure 5mbar)

· Internal Venting Funtion and Unique Flow Channel Design adopted

· Fix Device Design

  2mm gap at the end of connector for assemble holder

· No Use of Extra Connector

  The outlet has internal thread design which can connect with the inlet of printhead directly. While the inlet adopts integrated hose barb connector

· Internal Thread of the Outlet Adopts Creative Movable Connector Design.

   User can just screw it directly during installation and the filterwon't rotate with it, neither will the ink tube

Benefit

· Optimize installation space

· Meet the high ink volume needs and ideal for high speed printing

· Drain off bubbles, avoiding bubble point affect on the printing

· The filter can bevertical installed for effective utilization of filtration area

· Avoid ink tube connection, reduce ink spillage

· Easy and quick intallation for Users
