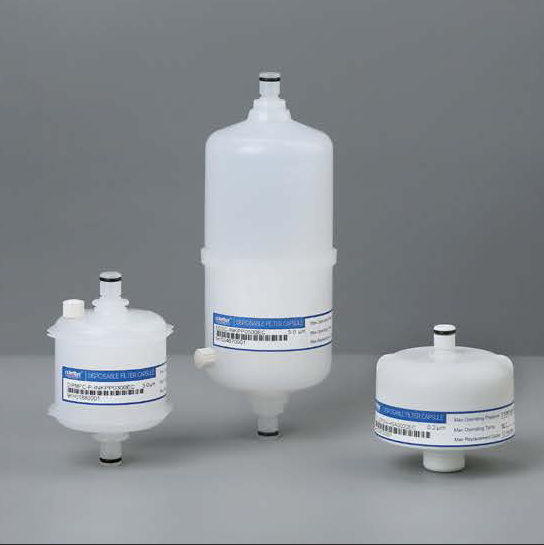

CPC Connector Filter

Standard CPC coneector adopted, perfect matching with fittings for excellent impermeability.



Feature

· Optional Filter Media
· CPC Connections
· Fiber Curing Treatment Technology Adopped
· Hot Melt Welding Technology



Benefit

· Suitable for use with different inks
· Easy and quick connection
· Fundamentally solve fiber releasing problem to better protect the printhead
· Ensure the filtration and compression strength, and to avoid the secondary pollution caused by adhesives and other welding processes


  • Specification
  • Performance
  • Ordering Information

Specification

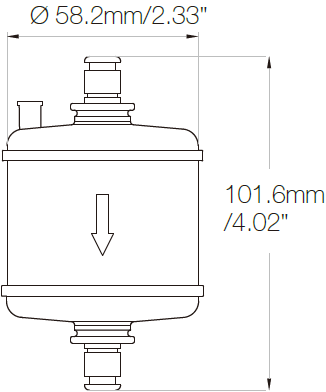

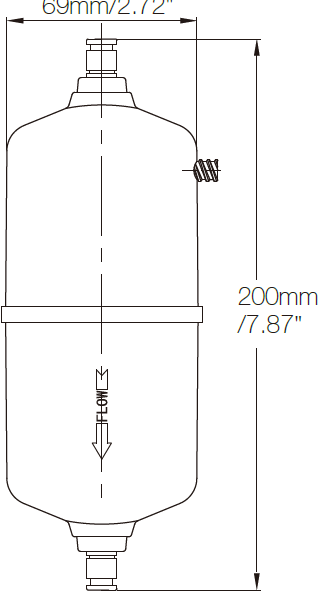

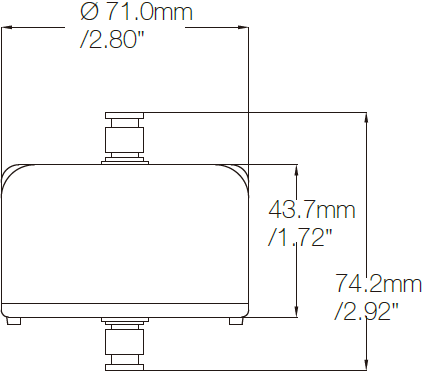

DIPMFHDIPMFNDIPMFJ
DiameterØ58.2mmØ71.0mmØ69.0mm
Length101.6mm74.2mm200mm
Inlet/Outlet1/4"CPC1/4"CPC1/4"CPC
Vent/Drain1/8"Luer Lock-1/8"Luer Lock
Filtration Area220 cm²264 cm²630 cm²
Filter MediaPleated PP

Cage/ Core/ Shell/ End Cap

Polypropylene

Max. Allowable Pressure

101PSI / 7 bar

Max. Allowable Temperature

50°C / 120°F






Ordering Information

Series

ShellTypeFilter Media  / Removal Rating Seal MaterialIndustry

DIPMFC

OT2

EDSC



- =Standard
     Polypropylene
B=Black

     polypropylene


_ = None

P  (only available

     for DIMPFC)

INKPP

0200 = 2.0μm

0500 = 5.0μm

1000 = 10.0μm

2000 = 20.0μm

5000 = 50.0μm


APBT

0500 = 5.0μm

1000 = 10.0μm

2000 = 20.0μm

E=EPDMC=Chemical

INKPPC

0500 = 5.0μm

1000 = 10.0μm

2000 = 20.0μm


APSP

0150 = 1.5μm

0300 = 3.0μm

0500 = 5.0μm

INKPPJ

0500 = 5.0μm

1000 = 10.0μm

2000 = 20.0μm


PFIF

0150 = 1.5μm

0300 = 3.0μm

0500 = 5.0μm
