Home Ink Jet Filtration for Printer System Point-of-Use Disc Filter
Point-of-Use Disc Filter

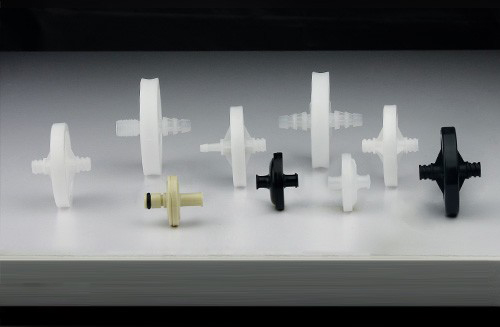

Disc Filter is designed to ensure critical protection of inkjet printheads.
Different sizes match different types of print heads, while meeting high interception efficiency and low pressure difference requirement, protecting the printheads without affecting the ink supply.
PPEP special filter material is used to protect the nozzle, high cleanliness. More choice of materials to meet different application needs, including air filtration, corrosive material filtration.


Feature

· Four Filter Medias Options
  Four kinds of media to be selected, PPEP, SS, GF and PTFE
· Multiple Connector Options
· Resonable Flow Channel Design
· Opaque UV Resistant Housing Design Available · Thermal-bonded Fiber Polypropylene Structure



Benefit

 · Suitable for different ink requirements
 · User-friendly for most common applications
 · Lower pressure difference and stable performance
 · Black housing protects againt UV light and prevents ink from curing inside the filter
 · Non-fiber releasing design.

  • Specification
  • Performance
  • Ordering Information

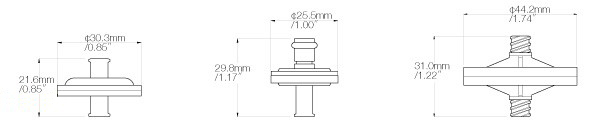

Item25 DISC20 DISC37 DISC
Diameter30.3 mm25.5 mm44.2 mm
Length21.6 mm29.8 mm31.0 mm
Inlet/OutletLuer LockInlet : 8mm Quick Coupling
Outlet : Luck Lock		Luer Lock
Filtration Area4.15 cm²2.54 cm²7.3 cm²

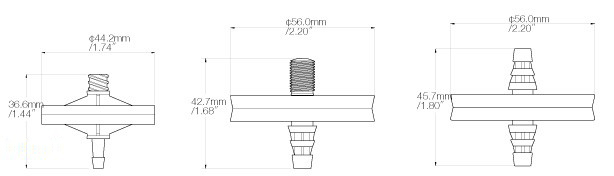

Item37 LHDISC47 DISC47 SSDISC
Diameter44.2 mm56.0 mm56 mm
Length36.6 mm42.756.0 mm45.7 mm
Inlet/OutletInlet : Luck Lock
Outlet : 4mm House Barb		Inlet : 1/8"NPT
Outlet : 1/4"-3/8" House Barb		1/4"-3/8" House Barb
Filtration Area7.3 cm²15.2 cm²15.2 cm²





                      H47DISC.png     image.png

ItemH47DISCAV50-JAV50
Diameter56.0 mm73.0 mm73.0 mm
Length42.5 mm48.0 mm82.0 mm
Inlet/Outlet

Inlet : 1/8" NPT

Outlet : 5-6mm House Barb

1/4" Jaco1/4"-1/2" House Barb
Filtration Area13.8 cm²20 cm²20 cm²




Flow Rate Characteristics

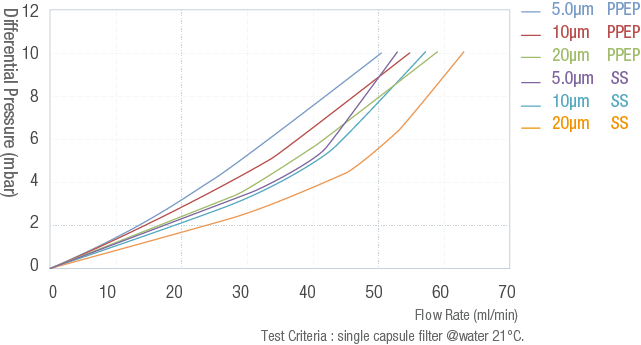

25 Disc

25DISC flow.png

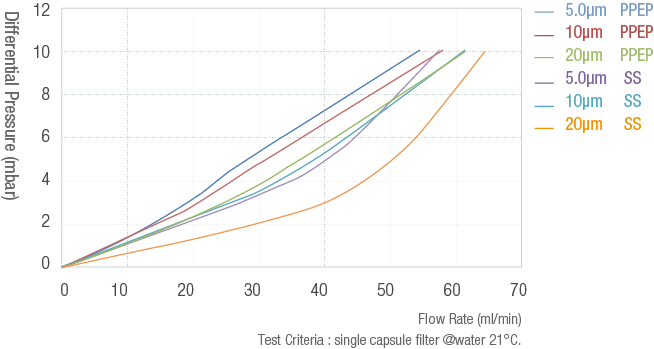

37 Disc

37DISC flow .png


Filter Media Options

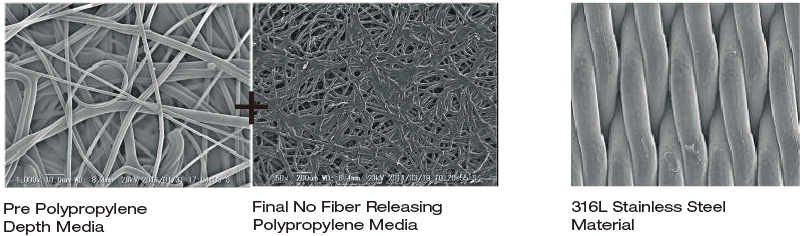

CBT SEM.png



PPEP

Two-layer Polypropylene Depth Media

  • Pre-polypropylene depth media: high flow rate, high dirty holding capacity
  • Final fiber to fiber thermal-bonded polypropylene media forms a stable structure, ensure no fiber releasing.


SS

316L Stainless steel material

  • Broad chemical compatibility.
  • Resistant to high temperature.

  • Initial differential pressure is low, flow rate is high.




Ordering Information

Series

ShellFilter Media  / Removal Rating FittingIndustry

20DISC

W25DISC

37DISC

LH37DISC

47DISC

SS47DISC

H47DISC

AV50

AV50-J




- =Standard
     Polypropylene
B=Black

     Polypropylene


PPEP = Polypropylene Media

0200 = 2.0μm

0500 = 5.0μm

1000 = 10.0μm

2000 = 20.0μm

5000 = 50.0μm


C = Female Luer Lock with

       4mm Hose barb addaptor

D = Female Luer Lock with

        3mm Hose barb addaptor

E = Rotate Plug

Q = Luer & hosebarb ID 8

N = None

C=Chemical

SS = Stainless Steel Mesh

0500 = 5.0μm

1000 = 10.0μm

2000 = 20.0μm


PTFE = Hydrophobic PTFE

0022 = 0.22μm

0045 = 0.45μm


GF = Glass Fiber Media

0100 = 1.0μm


* 20DSIC: Only White Shell and "SS"filter medium available;

* H47DISC, AV50, AV50-J:Only White Shell and "PPEP"medium available ; Without Fittings;
