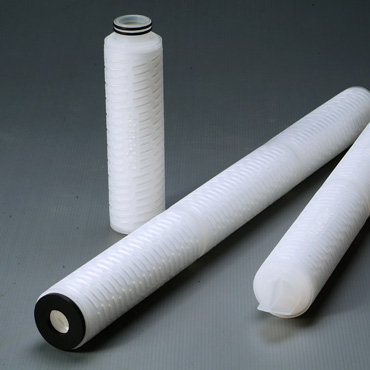

H2D Filter Cartridges
Polypropylene Media · Particle Removal

Cobetter H2D Filter Cartridges are composed of high-density pleated membrane, which ensures a larger filtration area when compared to other high-density polypropylene filters. Graded pore size distribution from coarse (upstream) to flne (downstream) provides higher dirt holding capacity and longer service life.

Features and Benefits

  • Large filtration area
  • FDA-listed material per 21 CFR
  • Low pressure drop and longer service life when compared to
  • similar filters
  • All polypropylene construction ensures chemical compatibility
  • High flow rates and dirt holding capacity
  • Low extractables

Typical Applications

  • Biological Products
  • Chemicals
  • DI Water
  • Film & Fiber
  • Food & Beverage
  • Pharmaceuticals
  • Specification
  • Performance
  • Ordering Information

Materials of Construction


Filter MediumPolypropylene
SupportPolypropylene
Core/Cage/End CapsPolypropylene
O-RingsRefer to Ordering Information
Effective Filtration Area0.8m² / Φ68 -10inch
0.55-1.3 m² / Φ83 -10inch



Operating Conditions


Maximum Temperature70°C (158°F)
Max. Differential Pressure4 bar / 21°C (70°F)
2.4bar / 70°C (158°F)
Steaming Sterilize (Autoclave)121°C / 30min
Hot Water Sterilization85°C / 30min



Biological Safety

Extractables< 30mg per 10 inch
Endotoxins< 0.25 EU/mL
