Multiple Capacity Capsule is developed for main filtraiton in the digital ink supply
system and small batch filtration.
Different volume housings design to fit diverse flow rate needs and life-time needs, especially for industrial printer.
· Multiple Capacities Available
200ml, 300ml, 400ml, 500ml and 700ml are
available
· Optional Media
Avaiable in six filter media options, including
INK-PPC,INK-PP, INK-PPJ, APSP, APBT and PTFE
· Reasonable Capsule Design
Air inlet and drain vent connection,
full hot-melt welding, thicken the connector
· Theremal Welding Technology
· Opaque UV Resistant Housing Design
Available
· Meeting different ink supply system
demands
· Suitable for different inks applications
· Better pressure resistance and durability
· No adhesive resins
· High level of cleanliness
· Black color capsule is speical designed
for protection from UV light
 |  |  | |
| Item | NPT342 | NPT42 | NPT82 |
| Diameter | Ø72.4mm | Ø72.4mm | Ø78.6mm |
| Length | 85.4 mm | 119.5 mm | 134.3 mm |
| Inlet/Outlet | 1/4"NPT | 1/4"NPT | 1/2"NPT |
| Vent/Drain | 1/8"NPT | 1/8"NPT | 1/8"NPT |
| Filtration Area | 280cm² | 500cm² | 700cm² |
| Filter Media | Pleated Polypropylene | ||
| Cage/Core/Shell/End Cap | Polypropylene | ||
| Max. Allowable Pressure | 101PSI / 7bar | ||
| Max. Allowable Temperature | 50°C / 120°F | ||
 |  | |

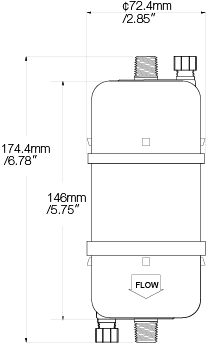

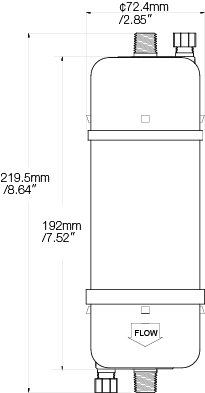

| Item | NPT742 | NPT942 |
| Diameter | Ø72.4mm | Ø72.4mm |
| Length | 174.4 mm | 219.5 mm |
| Inlet/Outlet | 1/4"NPT | 1/4"NPT |
| Vent/Drain | 1/8"NPT | 1/8"NPT |
| Filtration Area | 1220cm² | 2500cm² |
8 layers nano-fiber construction, enhanced
filtration area, ideal for filtration of high solids
containing inks such as ceramic inks for
ceramic printers. Particles can be gradually
removed, lifetime is extended while
maintaining same removal efficiency

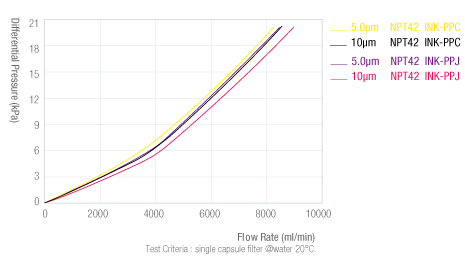

INK-PPJ Series is particularly suitable for CIJ
printers which provides low differential
pressure and high flow rate to ensure smooth
flow.
Series | Shell | Filter Media / Removal Rating | Industry | ||
NPT342 NPT42 NPT82 NPT742 NPY942 | - =Standard Polypropylene | INKPP 0200 = 2.0μm 0500 = 5.0μm 1000 = 10.0μm 2000 = 20.0μm 5000 = 50.0μm | APBT 0500 = 5.0μm 1000 = 10.0μm 2000 = 20.0μm | C=Chemical | |
INKPPC 0500 = 5.0μm 1000 = 10.0μm 2000 = 20.0μm | APSP 0150 = 1.5μm 0300 = 3.0μm 0500 = 5.0μm | ||||
INKPPJ 0500 = 5.0μm 1000 = 10.0μm 2000 = 20.0μm | PFIF 0150 = 1.5μm 0300 = 3.0μm 0500 = 5.0μm | ||||
