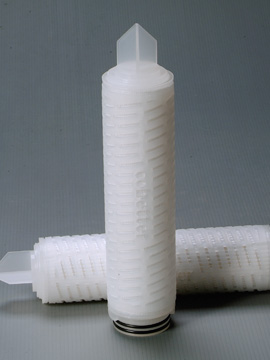

ProtectPP Filter Cartridges
Polypropylene Media · Pigment-Based Inks / Ceramic Inks

Cobetter ProtecPP Filter Cartridges are made of thermally bonded polypropylene microfibers. This technology forms a rigid fiber structure providing final protection to ink jet inks prior to filling by eliminating the risk of releasing fibers.


Features and Benefits

· Thermally-bonded polypropylene microfiber technology eliminates the risk of releasing fibers during the final filling of ink jet inks.


· Uses 18 MΩ pure water flushing in the filter manufacturing process to ensure that the filter itself is cleaned to the highest of standards.


· Polypropylene construction yields excellent compatibility with most ink chemistries





  • Specification
  • Performance
  • Ordering Information

Material of Construction

Filter MediumThermally Bonded Polypropylene
Support LayerPolypropylene / Nylon Mesh
Core/Cage/End CapsPolypropylene
O-RingPlease refer to ordering information
Effective Filter Area≥0.6 m²  /10 inch



Operating Conditions

Max. Operating Temperature80°C
Max. Differential Pressure
 		4.0 bar / 21°C
2.1 bar / 80°C





Ordering Information

Series

Removal Rating End CapLenghtSeal Material Industry

SLPP



0010

0020

0030

0035

0045

0500

0100

1000

2000

4000


= 0.1μm

= 0.2μm

= 0.3μm

= 0.35μm

= 0.45μm

= 0.5μm

= 1.0μm

= 10.0μm

= 20μm

= 40μm


DOE = Double Open End

TC = 222/Flat Cap

TF = 222/Fin Cap

SF = 226/Fin Cap

SC = 226/Flat Cap

05= 5"

10=10"

20=20"

30=30"

40=40"

S=Slilicone

E=EPDM

V=Viton

P=Encapsulated Viton

C= Chemical
