Ultrapore Filter Cartridges
GlassMicro Fiber · Final Filtration

Cobetter Ultrapore Filter Cartridges are used as a final filtration for pigment-based inks, dye-based inks, and ceramic ink jet inks. PP Nano Fibers outer layers provide high flow rates and multi-layer of super fine glass micro fiber contribute to high efficiency.


Features and Benefits

· Optimized design provides high dirt holding capacity and high removal efficiency (>99.9%).


· Outer layers use PP nano fibers while inner layers use multiple layers of super fine glass micro fibers. This feature allows a high removal efficiency of particles. In addtion, it has an extremely long life time while maintaining high removal efficiency for small particle removal.


· Unique heat solidification technology bonds fibers together, thus; preventing fiber release.

· Excellent gel retention capability.

· PP+GF Media yields excellent compatibility with most ink chemistries.



Application

· Final Filtration with Super Fine Glass Micro Fiber for Pigment-Based Inks,

  Dye-Based Inks, and Ceramic Ink Jet Inks


  • Specification
  • Performance
  • Ordering Information


Material of Construction

Filter MediumNano Fiber Media (PP+GF)
Support LayerPolypropylene / Nylon mesh
Core/Cage/End CapsPolypropylene
O-RingPlease refer to ordering information
Effective Filter Area0.24m²  / 10 inch



Operating Conditions

Max. Operation Temperature80°C
Max.Differential Pressure

4.0 bar / 21°C
2.1 bar / 80°C

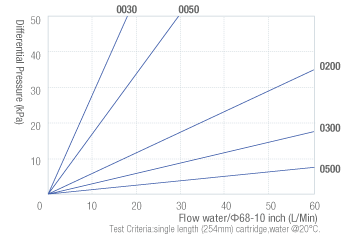

Flow Rate Characteristics
SHP-inkjet cbt-flow rate.png


Retention Characteristic

Pore sizeSHP 0.3SHP 0.5SHP 1.0SHP 3.0SHP 5.0
≥0.2μm99.38%96.65%-- -
≥0.5μm99.99%99.91%92.75%- -
≥1.0μm100%99.99%99.88%- -
≥2.0μm100%100%99.99%85.73% 68.35%
≥3.0μm100%100%100%99.92% 79.47%
≥5.0μm100%100%100%100% 99.90%





Ordering Information

Series

Removal Rating End CapLenghtSeal Material Industry

SHP



0030

0050

0100

0200

0300

0500

1000



= 0.3μm

= 0.5μm

= 1.0μm

= 2.0μm

= 3.0μm

= 5.0μm

= 10.0μm




DOE = Double Open End

TC = 222/Flat Cap

TF = 222/Fin Cap

SF = 226/Fin Cap

SC = 226/Flat Cap

05= 5"

10=10"

20=20"

30=30"

40=40"

S=Slilicone

E=EPDM

V=Viton

P=Encapsulated Viton

C= Chemical
