High Dirt Holding Capacity Filter Cartridges

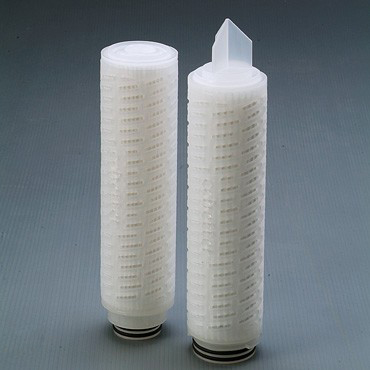

CMPP Filter Cartridge Series

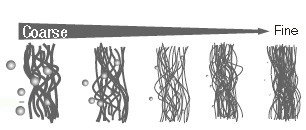

Graded Filtration

Multi-layer Nano-fiber media with a graded pore size results in a filter with higher dirt holding capacity and longer service life.


Available in a Wide Range of Pore Sizes

Available in removal ratings from 0.5μm to 90μm to meet a wide range of application requirements.

Broad Chemical Compatibility

A pure PP structure without any adhesives or surfactants provides excellent chemical compatibility and effectively controls extractables.

  • Specification
  • Performance
  • Ordering Information

Operating Conditions

Filter MediaPP
End cap /Core/CagePP
Max. Operating Temperature80°C
Max. Differential Pressure0.4 MPa / 21°C
0.24 MPa / 80°C
Filter Area0.3 m² / 10 inch

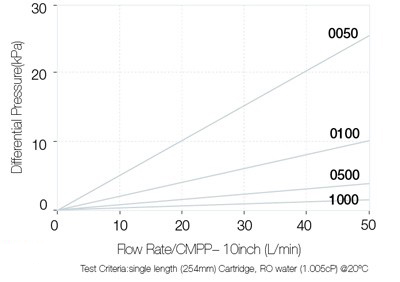

Flow Rate Characteristics

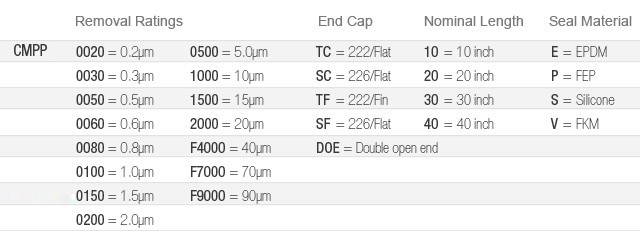

Ordering Information
