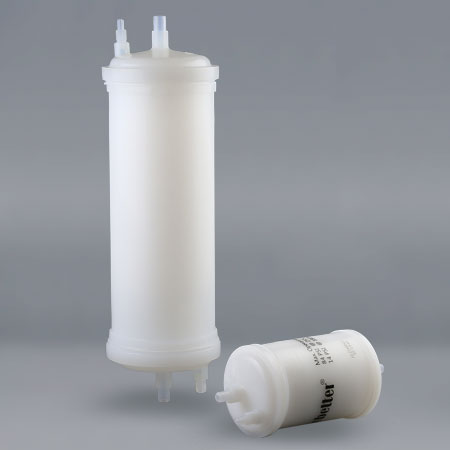

| Cartridge | Compact Capsule | Disposable | Small In-line X type Disposable | |
| Membrane | Hydrophobic HAPES / Hydrophilic HAPES | |||
Supports / Cage Core / End Caps | HDPE | |||
| O-ring | TEV or EPDM | - | TEV | TEV |
| Shell（Compact Capsule） | - | HDPE | - | - |
| Shell（Disposable ) | - | - | PFA | PFA |
| Max. Operating Temperature | 70°C | 38°C | 70°C | 70°C |
| Max. Operating Pressure | - | 0.34 MPa @ 25°C | 0.58 MPa @ 25°C | 0.4 MPa @ 25°C |
Max. FWD Differential Pressure | 0.34 MPa @ 25°C | - | - | - |
Max. BWD Differential Pressure | 0.34 MPa @ 25°C | - | - | - |
| Filter Areas | X1 (ø68mm) 0.8m² / 10" Z1 (ø83mm) 1.4m² / 10" Z2 (ø83mm) 1.7m² / 10" | X1 (ø68mm) 0.42m² | ||
