Home Industries Pharmaceutical Absoguard Filter Cartridges
Absoguard Filter Cartridges
Polypropylene Media · Particle Removal

Cobetter Absoguard Filter Cartridges are constructed all polypropylene media and provide accurate efficiency for the retention of particles in critical applications. It combines high dirt holding
capacity with longer service life and high flow rates.


Features and Benefits

  • Pleated surface provides high flow rate and extended service life.
  • Nano fiber media---provides absolute-rated filtration efficiency and assures great filtration performance
  • All-polypropylene construction---provides wide chemical compatibility
  • Specification
  • Performance
  • Ordering Information

Material of Construction


Filter MediumMultiple Layers Melt-Blown Polypropylene
Support LayerPolypropylene
Core/Cage/End CapsPolypropylene
O-RingPlease refer to ordering information



Operating Conditions

Maximum Temperature80°C
Max.Differential Pressure4.0 bar / 21°C
2.1 bar / 80°C

Steam Sterilization (Autoclave)

121°C, 20min.at max differential pressure of 0.5 bar/7psi
Hot Water Sterilization85°C / 30min

Flow Rate Characteristics


Retention Characteristic

Pore sizeAPP 0.5APP 1.0APP 3.0APP 5.0
≥1μm99.99%99.78%99.78%90.35%
≥2μm100%99.99%95.45%91.78%
≥5μm100%100%99.93%98.19%
≥10μm100%100%100%99.99%
≥12μm100%100%100%100%

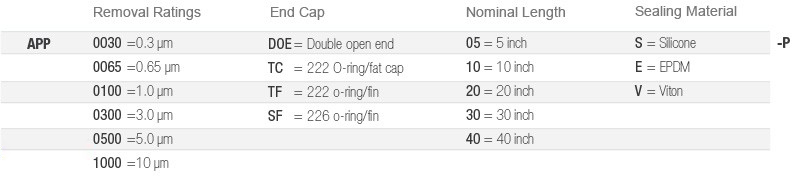

Ordering Information
