High Pressure Endurance Capsule

Cobetter DNMF Capsule Filters have excellent pressure endurance, temperature resistance and a large filtration area which are commonly used in CIJ inks and UV Inks. In addition, the capsule has a compact design, high retention efficiency and convenient connections.

  • Specification
  • Performance
  • Drawing
  • Ordering Information

High Pressure Endurance

DNMF Capsule has a round-corner design with superior pressure resistance, which can withstand extremely low temperatures of up to -15°C.

Excellent Durability

DNMF capsule can withstand over 100,000 times pulse fatigue. This satisfies the demanding requirements for high pressure ink systems such as CIJ printers.

Excellent Structural Design

Inlet and outlet configurations are specially designed in the same plane makes the connection simple and easy by eliminating the need for an adapter or bending which greatly saves on installation space.

Thermal Welding Technology

No adhesive resins and ensure capsule filter excellent pressure endurance.

UV-resistant Housing Design

UV-resistant housing material-black color DM,F capsule is special designed for protection from UV light.

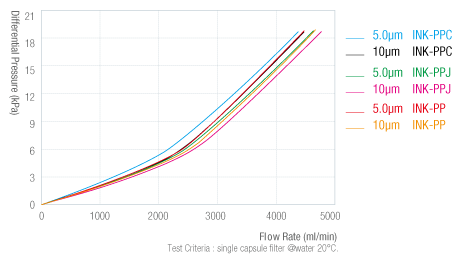

Flow Rate Characteristics


High Precision

High Precision, multiple nano-fiber construction, providing over 99.8% removal efficiency, recommend for regular dye-based inks and most pigment-based inks.

Low Differential Pressure & High Flow Rate

INK-PPJ Series is particularly suitable for CIJ printers which provides low differential pressure and high flow rate to ensure smooth flow.

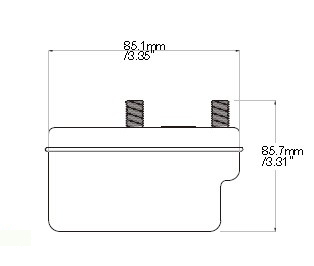

Drawing

DNMFtu.jpg                                            DNMFtu.jpg


Item

Diameter¢ 85mm
Length59 mm
Inlet/Outlet1/4"Jaco
Vent/Drain1/8"NPT
Filter MediaPleated Polypropylene
Cage/Core/Shell/End CapPolypropylene
Maximum Allowable Pressure101PSI / 7bar
Maximum Allowable Temperature50°C / 120°F
Filtration Area288 cm2

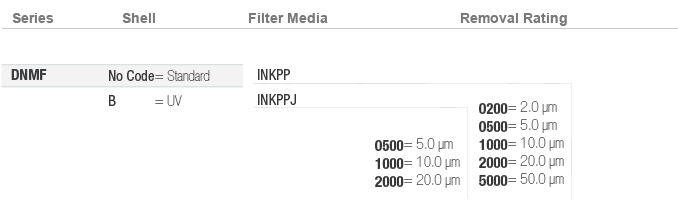

OrderingInformation
