StarCap UCF-T Capsule Filter
Polypropylene Media

Cobetter StarCap UCF-T Capsule Filter is self-contained and ready to use filter for removal contaminants and particles for ink jet ink formulation applications. This kind of design makes change-outs quick and convenient while reducing operator contact with inks. No adhesives or glue are used in the manufacturing process, and all bonding is done by thermal welding.

Features and Benefits

  • Cost Reduction: reduce change-out and cleaning time.
  • Ready to Use Design: easy to install.
  • Provides Addtional Safety: eliminates exposure of solvents and other hazardous materials by direct.contact and evaporating of chemicals into the work environment.
  • Efficiency: minimize the loss of valuable liquid.
  • Clean: no exposure to hazardous materials.
  • Specification
  • Performance
  • Ordering Information

Material of Construction

Outer ShellPolypropylene
Filter MediaPolypropylene/PES/PTFE
Inlet & Outlets1 inch Sanitary Flange
Length10" / 20" / 30"



Operating Conditions

Maximum Temperature80°C
Max.Differential Pressure

4bar / 21°C
2.1bar / 80°C
Steaming Sterilize(Autoclave)null
Inline Steaming Sterilizenull
Hot Water Sterilizenull

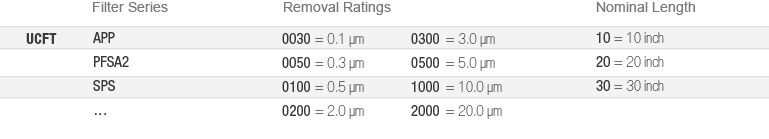

Ordering Information
