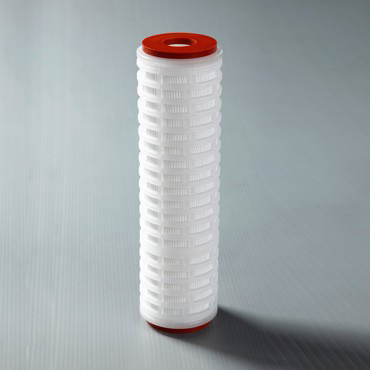

PolyFlow Filter Cartridges
Nominal-rated Polypropylene Media · Particle Removal

Cobetter PolyFlow ,High-flow Filter Cartridges are made of all polypropylene pleated microfiber, providing great filtration performance with lower cost. Higher flow rates, dirt holding capacity and filltration efficiency make it the optimal solution for the pre-filtration of liquids.


Features and Benefits

  • Lasting and reliable high filtration efficiency
  • Broad chemical compatibility makes it suited for various kinds of acids, bases, and solvents.
  • Pleated surface area provides superior flow rate and extended service life
  • Welded design eliminates the need for adhesives which can be a contaminate source
  • Available in nominal ratings from 0.1 to 70 microns for a range of precise size removal
  • Specification
  • Performance
  • Ordering Information

Materials of Construction

Filter MediumPolypropylene
Support LayerPolypropylene
Core/Cage/End CapsPolypropylene
End Caps InsertSS304/PBT (Autoclavable)
O-RingsPlease refer to ordering information
Effective Filter Area0.51m2/ Ф68-10 inch


Operating Conditions

Max. Operating TemperatureMax. Operating Temperature
Max. Differential Pressure

4 bar / 21°C

2.4 bar / 80°C

Steam Sterilization (Autoclave)121°C / 30 min
Hot Water Sterilizatio85°C / 30 min


Food and Biological Safety

Extractables< 30 mg per 10 inch
Endotoxins< 0.25 EU/mL

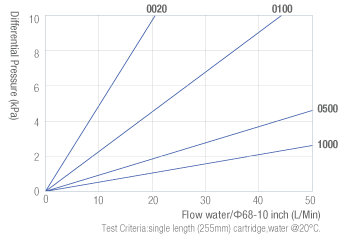

Flow Rate Characteristics

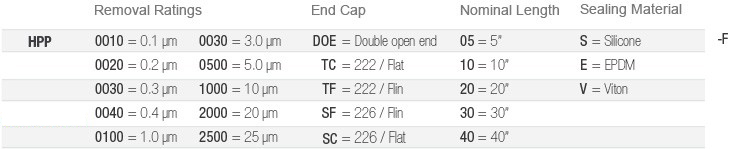

Ordering Information
