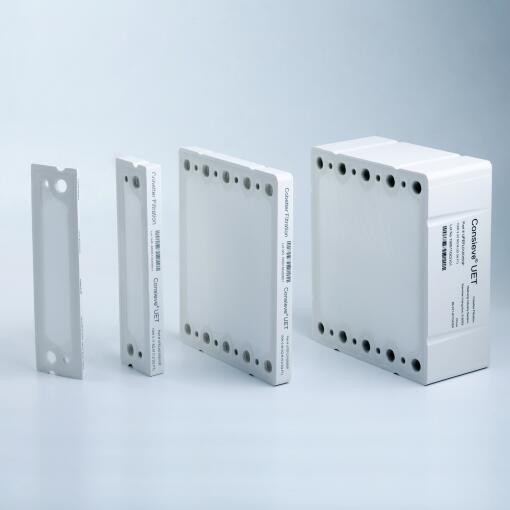

Consieve UET Cassette membranes have a high retention efficiency and are easy to clean/install. Available in a wide range of configurations.
Due to its design, it is easy to amplify/increase based on specific process requirements.
The inner gaskets make installation/cleaning/storage/replacement quick and easy. Low
working volume and high efficiency ensure product yields.
Application
| Fields
|
H-CFH Ultrafiltration Stainless Steel Holder
 |  | |

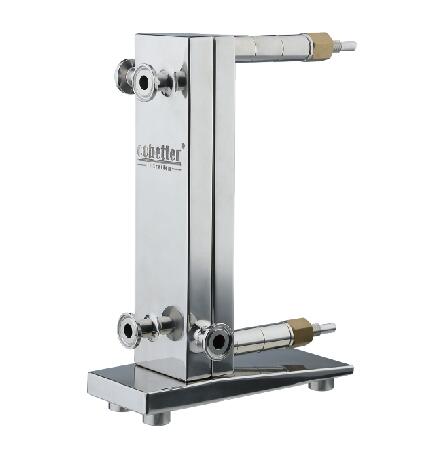

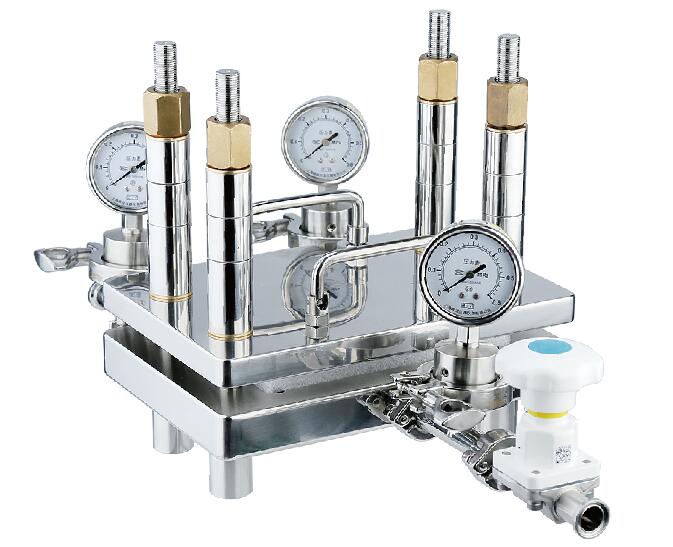

0.1 m² Stainless Steel Holder Process development and small-volume parentals production with an EFA of 0.1m². Unique design is fully compliant with biopharmaceutical applications and their requirements. | 0.5 m² Stainless Steel Holder Accomodate an effective filter area of 0.5 m² -2.5 m² up to 5 m² |

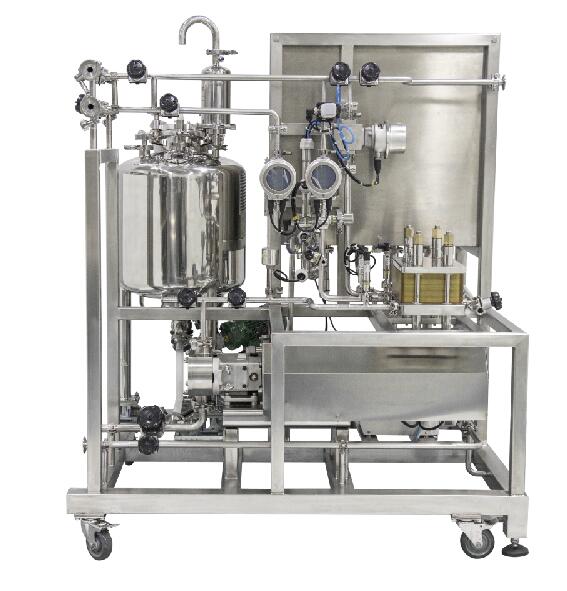

Ultrafiltration System
Cobetter is able to design Ultrafiltratioin system based on customer specifications
and requirements especially for Pilot Labs and Process Systems
 |
|

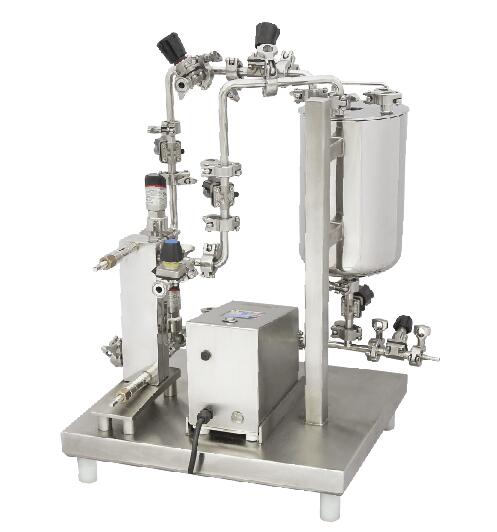

Pilot System Throughput (50-100L) |
| Materials | PES |
| Material Features | Low protein binding and high product yield superior flow rates |
| PH Range | Broad chemical compatibility: pH 1-14 |
| NMWL | 5/ 8/ 10/ 30/ 50/ 100KD |
| Operating Temperature Range | 4-50°C |
| Max. Operating Pressure | 6.0 bar @ 25°C |
| Diffusion Flow (Air) | 0.11 m² ≤12 ml/min @ 1.0 bar, 0.46 m² ≤50 ml/min @ 1.0 bar |
| Pressure Drop | 0.3~0.6 bar ( Circulation Flow Rate 6L/min/m² ) |
| Types | Available Size | Applications | Throughput | Notes | |
| Lab | LA | 100 cm² 0.11 m² | R&D R&D, Pilot Production | 200-2000ml 5-50L | Membrane Cassette ; Stainless Steel Holder required |
| Flow | FL | 0.46 m² 2.33 m | Pilot Production, Large Scale Production Pilot Production, Large Scale Production | ＞50L ＞50L | Membrane Cassette ; Stainless Steel Holder required |
| Application | Material of Membrane | Format | NMWL | Effective Filtration Area | Industry |
| UF | E | LA | 0005 | 010 | P |
| UF Ultrafiltration | E PES | LA FL | 0005 5 KD 0008 8 KD 0010 10 KD 0030 30 KD 0050 50 KD 0100 100 KD | 001 100 cm² 010 0.11 m² 050 0.46 m² 250 2.33 m² | P Pharmaceutical |
