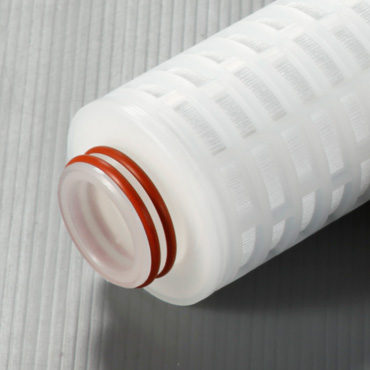

Cobetter SuperPVDF series is polyvinylidene fluoride filter, which is made of vinylidene fluoride filter membrane resistant to organic and inorganic solvents. It can great apply to normal dye-based ink, eco-solvent dyes and color paste filtration. LHPV adopts hydrophilic modified PVDF filter membrane, it can be used directly without wetting.
polyethersulfone membrane.
- PVDF micro membrane has 100% interception efficiency to ensure absolute precision, the highest precision can reach 0.01μm.
- PVDF has excellent chemical compatibility and good tolerance to conventional solvents
- Compared with PTFE filter material, PVDF has a higher cost performance and is a more economical absolute filter for solvent ink.
- LHPV hydrophilic modified PVDF membrane can be directly used without alcohol prewetting, which is extremely simple to use for eco-solvent products and will not cause secondary pollution.
| Filter Medium | PVDF |
| Support Layer | Polypropylene |
| Core/Cage/End Caps | Polypropylene |
| O-Rings | Please refer to ordering information |
| Effective Filtration Area | 0.64 m² x 2 /10 inch |
| Max. Operating Temperature | 80°C |
| Max. Differential Pressure | 4.0 bar / 21°C 2.4 bar / 80°C |
Removal Rating | 0.1μm /0.22μm /0.45μm /0.65μm /1.0μm |
| Removal Ratings | End Cap | Nominal Length | Seal Material | -C | ||
| LPV | 0010=0.1μm | DOE=Double Open End | 05= 5" | S=Slilicone | ||
LHPV | 0022=0.22μm | TC=222 O-ring/Flat | 10= 10" | E=EPDM | ||
| 0045=0.45μm | TF=222 O-ring/Fin | 20= 20" | V=Viton | |||
| 0065=0.65μm | SF=226 O-ring/Fin | 30= 30" | P=Encapsulated Viton | |||
| 0100=1.0μm | SC=226 O-ring/Flat | 40= 40" | ||||
