General Industry
Home Ink Jet Filtration for Ink Production SteriPS Filter Cartridges

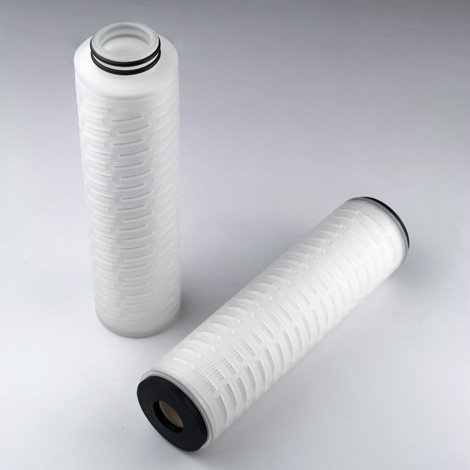

SteriPS Filter Cartridges
Single-Layer PES Membrane · Final Filtration

Cobetter SteriPS Filter Cartridges are specially designed to provide superior flow rates, high retention efficiency for dye-based ink jet inks final filtration. The cartridge features a single-layer symmetric hydrophilic polyethersulfone membrane.


Features and Benefits

- Inherently hydrophilic membrane provides exceptionally low initial pressure drop.

- Each filter is individually integrity tested to ensure filter quality.

- 0.22μm Bubble point ≥0.32Mpa Provides broad chemical compatibility (pH1-13); --  - ------ Great compatibility with dye-based ink chemistries.



  • Specification
  • Performance
  • Ordering Information


Materials of Construction

Filter Medium

Single-Layer PES Membrane

Support LayerPolypropylene
Core/Cage/End CapsPolypropylene
O-RingsPlease refer to ordering information
Effective Filtration Area0.6 m² /10 inch



Operating Conditions

Max. Operating Temperature

80°C

Max. Differential Pressure

4.0 bar / 21°C

2.4 bar / 80°C

Removal Rating

0.1μm /0.22μm /0.45μm

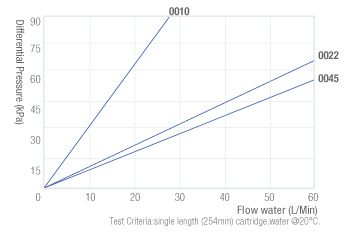

Flow Rate Characteristics
SPS-SteriPS Filter Cartridges.png





Ordering Information


Removal Ratings   End CapNominal LengthSeal Material  -C

SPS

0010=0.1μmDOE=Double Open End05= 5"S=Slilicone


0022=0.22μmTC=222 O-ring/Flat10= 10"E=EPDM


0045=0.45μmTF=222 O-ring/Fin 20= 20"V=Viton



SF=226 O-ring/Fin 30= 30"P=Encapsulated Viton



SC=226 O-ring/Flat  40= 40"


















End Cap

DOE

SCSFTF
DOE CBT.pngSC CBT.pngSF cbt.pngTF cbt.png
