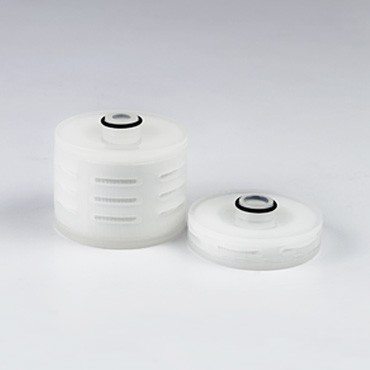

F016/F004/118 Capsule Filter Series

F016/F004 Capsule Filters use a specific shell/cage that is easy to install, use, and replace. It is available in a wide range of filtration media and removal ratings for use according to a customer's requirements and specifications. UPE filtration media does not require pre-wetting thus reducing operation time. It also provides high low rates and low pressure loss. In addition the cage/support use HDPE media which provides good chemical compatibility and low extractable.



Low Extractable Media Design

Cage/support use HDPE media which provides good chemical compatibility and low extractable.


High Flow Rate / Low Pressure Drop/High Efficiency

UPE filtration media requires no pre-wetting thus reducing operation time and ensuring high low rates and low pressure loss. It's compact design provide high filtration efficiency.


Different Filtration Medias Option

Customers can choose the filtration media (PP/PTFE/UPE) depending on their requirements and specifications.


F016/F004/118 Capsule Filter Series




  • Specification
  • Performance
  • Ordering Information


Operating Conditions

Filter MediaUPE / PTFE / PP
End cap /Core/CageHDPE / PP
Max. Operating Temperature60°C
Max. Differential Pressure

0.34 MPa / 21°C  (Forward pressure difference)

0.27 MPa / 21°C  (Reverse pressure difference)

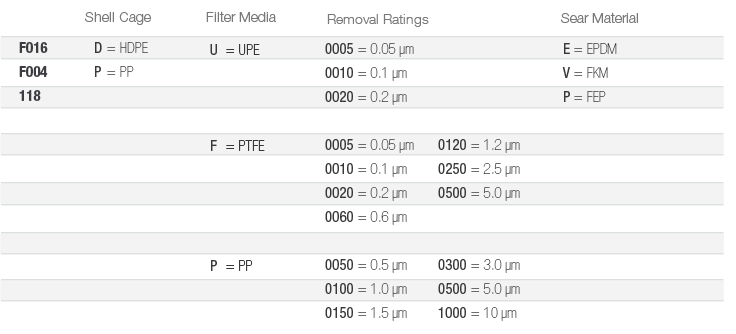

Ordering Information

F016-F004-118 Ordering Information
