Filter Cartridge Specially Designed for HF Filtration

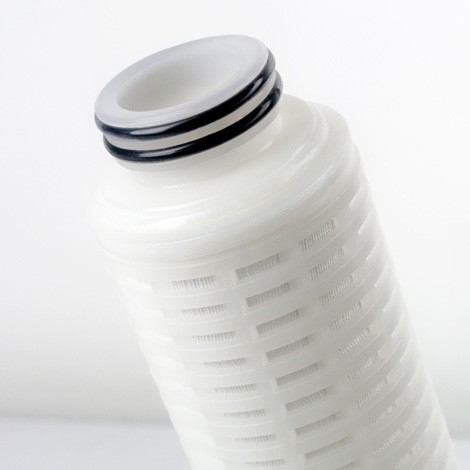

CAPTF/CAPTFI Filter Cartridge Series

CAPTF Filter Cartridges have an all-polyfluorene construction with a PTFE membrane which makes it suitable to filter electronic grade chemicals.



Available as a Hydrophilic PTFE Membrane

APTFI constructed as a hydrophilic PTFE membrane requires no pre-wetting and is ready-to-use to filter polar liquids.


All-Polyfluorene Construction

An all-polyfluorene construction provides excellent chemical compatibility and temperature resistance.


Especially Suited to Filter HF Acid


Each Element is Individually Integrity Tested




  • Specification
  • Performance
  • Ordering Information


Operating Conditions


CAPTFCAPTFI
Filter MediaPTFEHydrophilic PTFE
End cap /Core/CagePVDF
Max. Operating Temperature100°C
Max. Differential Pressure

0.4 MPa / 21°C








Flow Rate Characteristics

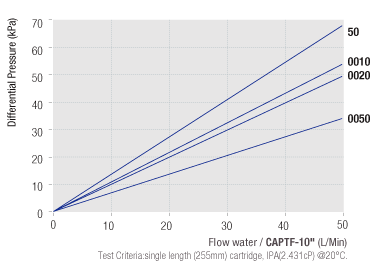

CAPTF Flow Rate Characteristics





Ordering Information

    Removal Ratings   End CapNominal LengthSeal Material

CAPTF

NM07=0.2μm0010=0.1μmTC=222 / Flat05= 5"P=PFA-E

CAPTFI

NM15=0.3μm0020=0.2μm
10= 10"



NM20=0.5μm0030=0.3μm
20= 20"



NM30=0.6μm0050=0.5μm





NM50=0.8μm0100=1.0μm






0500=5.0μm






1000=10.0μm
