High Efficiency Gas Filter Cartridges

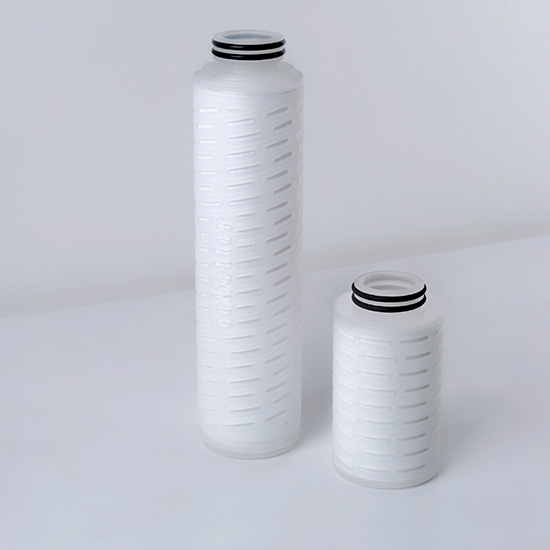

GTF Filter Cartridge Series

GTF Filter Cartridges use hydrophobic and high-density pleated technology for a large filtration area thus ensuring superior flow rates, low-pressure drops, and extended service life.


Feature and Benefits

  • Effective Filter Area

    High-density pleated technology provides a large filtration area.

  • Precise Removal Ratings

    PTFE membrane provides absolute removal rating of 0.003μm to meet stricter requirements

  • High Flow Rates and Low-Pressure Drops

    Inherently hydrophobic PTFE membrane provides exceptionally high flow rates with low-pressure drops.

  • Each Element is Individually Integrity Tested

  • Specification
  • Performance
  • Ordering Information


Operating Conditions

Filter MediaPTFE
End cap /Core/CagePP
Max. Operating Temperature80°C
Max. Differential Pressure0.4 MPa / 21°C
0.24 MPa / 80°C

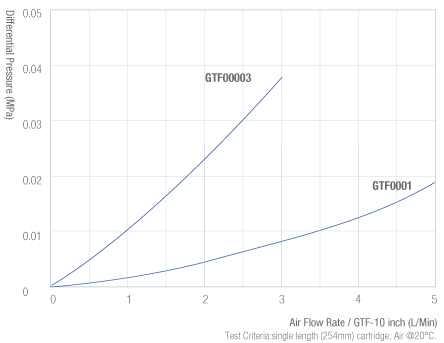

Flow Rate Characteristics


GTF Flow Rate Characteristics


Ordering Information

    Removal Ratings   End CapNominal LengthSeal Material

GTF

00003=0.003μmSF=226 / Fin 05= 5"S=Slilicone



0001=0.01μmTC=222 / Flat 10= 10"E=EPDM

0010=0.1μm
20= 20"

0020=0.2μm












GTFN
 GTFF
GTFN.jpg00003=0.003μm
GTFF.jpg00003=0.003μm
0001=0.01μm 0001=0.01μm
0010=0.1μm
0010=0.1μm
0020=0.2μm 0020=0.2μm
