High Pure Ion Exchange Resin Filter Cartridges

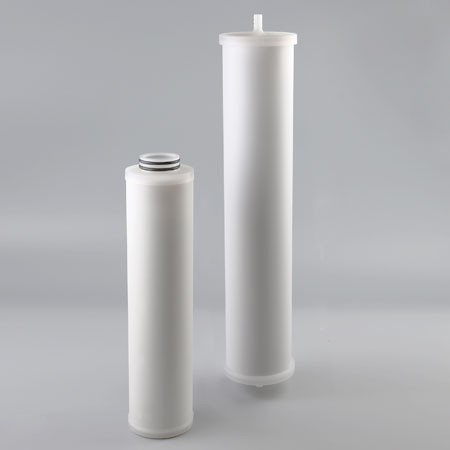

IXF Filter Cartridge Series

IXF Filter Cartridges are constructed of mixed-bed resins and high-purity PP providing efficient particle filtration efficiency and good recovery conductivity capability. For DI water filtration, it can recover conductivity back to 18MΩ/cm and reduce TOC extractable in short periods of time. No adhesives or surfactants are used which results in high filter cleanliness with the resin membrane and PP cage.


IXF Filter Cartridges can be customized according to customer requirementsand specifications.

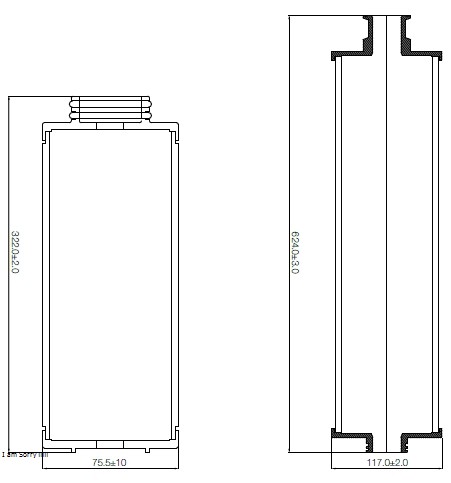

IXF drawing.jpg



  • Specification
  • Performance
  • Ordering Information


Materials of Construction

Filter MediaIon Exchange Resin
End Cap /Core/CagePP
Max. Operating Temperature40°C
Max. Differential Pressure0.3 MPa / 20°C

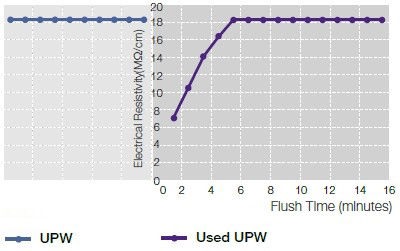

Downstream Electrical Resisitvity Recovery Test

IXF flow Downstream Electrical Resisitvity Recovery Test


Ordering Information

Please contact Cobetter for additional information.
