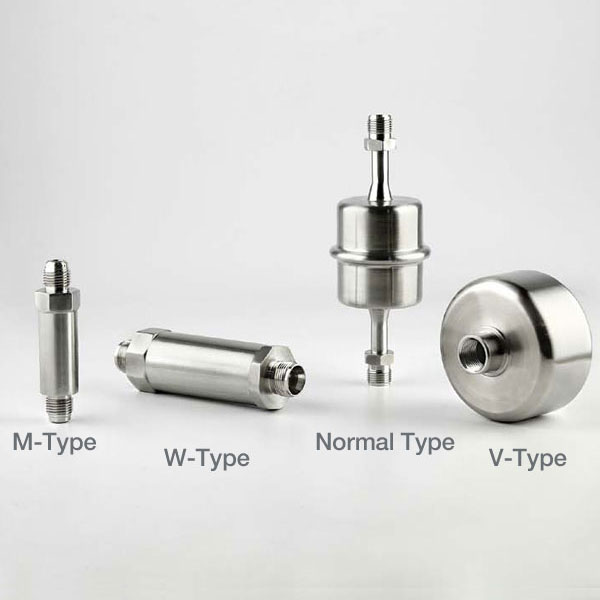

LAFS Filters have a compact construction composed of a high-purity stainless steel cage. It is specially designed for the fine fitration of semic-process gas with high temperature and pressure.
High Flow Rates & Low Pressure Drop
Inherently hydrophobic PTFE membrane provides exceptionally high flow rates with low-pressure drop.
Pretreatment
The filter cartridge and its parts are manufactured and packaged in a clean room environment. Attached to the cartridge are particles and water < 10ppb. It can be used quickly for filtration
100% Helium Leak Test
100% tested using the helium leak test to ensure quality.
Electronic Grade Cage Treatment
Internal Electro-polish with an internal surface of Ra<0.3μm
Excellent Chemical Compatibility
PTFE membrane and high-purity electronics grade SUS316 cage are both corrosive-resistant with active gas. This feature guarantees stable performance of gas filtration at high temperatures and pressures.
Fine Filtration
Removal ratings of 0.003 m which are necessary for fine gas filtration
| Filter Media | PTFE |
| Support Layer | PFA / PP |
| Core/End Cap | PFA / PP /PVDF |
| Removal Ratings | 0.003μm |
| Cage | SUS316L |
| Max. Operating Temperature | 170°C |
| Max. Differential Pressure | Forward 0.55 MPa / 121°C Reverse 0.34 MPa / 21°C |
