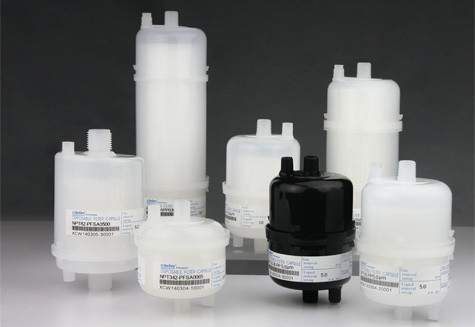

NPT/SW Capsule Filters can be used with a wide range of volumes. NPT/Swagelock inlet/outlet connections with a connector are available. It is quick and easy to install and available in different filtration media depending on customer requirements and
specification.
Available in Capacities of 200ml/300ml/400ml/500ml/700ml
It is availabe in PTFE/PES/PP filtration media depending on requirements and speci cations. Additionally it can come with a HDPE cage/shell which provides the lter with extensive chemical compatibility.
Compact design allows for installation in narrow spaces.
Drain/vent design improves filtration efficiency and reduces residual liquid wasted.
Shell, cage, and support all use high purity PP material that is thermally bonded with no adhesives. The capsules is flushed with pure water before packaging to ensure low extractable and high pressure resistance.
Internal thermally bonded PP media greatly reduces the risk of fibers being released.
| End cap /Core | PP/PTFE/PES/Nylon/GF |
| Cage | PP / HDPE |
| Max. Operating Temperature | 50°C |
| Max. Differential Pressure | 0.7 MPa @ 21°C |
| Model | NPT342 | NPT42 | NPT742 | NPT82 | NPT84 | NPT942 |
| Diameter | Ø73mm | Ø73mm | Ø73mm | Ø79mm | Ø88mm | Ø73mm |
| Length | 85mm | 119mm | 176mm | 134mm | 130mm | 217mm |
| Inlet/Outlet | 1/4"NPT | 1/4"NPT | 1/4"NPT | 1/2"NPT | 1/2"NPT | 1/4"NPT |
| Vent/Drain | 1/8"NPT | 1/8"NPT | 1/8"NPT | 1/8"NPT | 1/4"NPT | 1/8"NPT |
| Model | SW343 | SW343 | SW743 | SW943 | SW344 | SW44 | SW744 | SW944 | SW764 | SW84 | SW784 |
Diameter | Ø71.5 | Ø71.5 | Ø71.5 | Ø71.5 | Ø71.5 | Ø71.5 | Ø71.5 | Ø71.5 | Ø69.5 | Ø70.5 | Ø71.5 |
Length | 86 | 118 | 173 | 217 | 86 | 119 | 174 | 218 | 182 | 115 | 170 |
| Inlet / Outlet | 1/4" Swage | 1/4" Swage | 3/8" Swage | 1/2" Swage | |||||||
| Vent / Drain | 4 mm Swage | 1/4" Swage | 3/8" Swage | 1/2" Swage | |||||||
