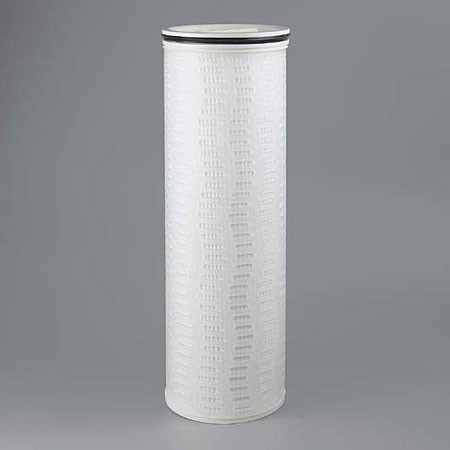

Prifend High Flow DI Water Filter

· Suitable for high flow rate filtration design



· Large filtration area,High dirt holding capacity



· Easy to install and replace , small occupying area, economic







Filter Performance Comparision

  Filters Quantities vs Same Filter Capacity

150 m³/h
High Flow Filtration SystemPleated Filter SystemDepth Filter System

High Flow

Filtration System

Pleated

Filter System

Depth

Filter System

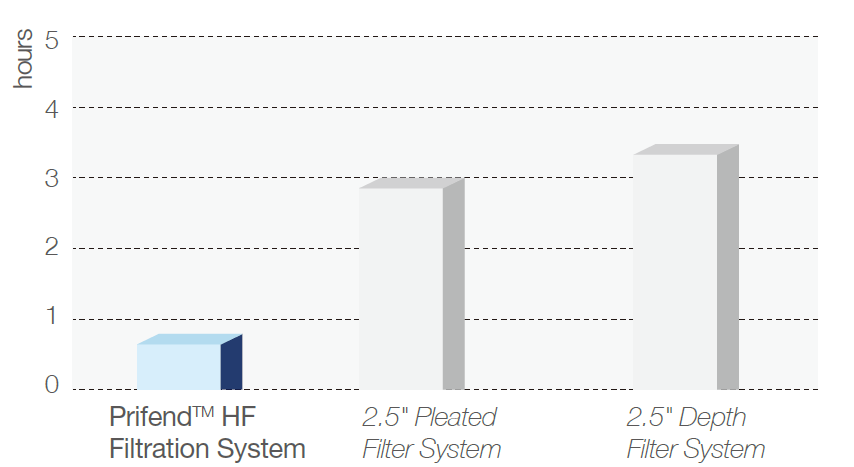

  Change-out Time
change-out time



   Reduce the number of filters by 90% ↓
   Decrease the volume of housing by 50% ↑
   Easier operation and change-out









  • Specification
  • Performance
  • Ordering Information

Rentention Characteristic

Filtration Efficiency
Particle Size0.8μm1.0μm2.0μm3.0μm5.0μm10μm20μm
≥1μm99.89%
99.82%95.00%86.97%79.86%42.23%24.38%
≥2μm99.97%99.87%98.64%96.84%90.09%70.49%40.09%
≥5μm100.0%99.93%99.90%98.86%98.36%82.26%76.66%
≥8μm100.0%100.0%99.97%99.20%98.88%95.25%82.60%
≥10μm100.0%100.0%100.0%99.58%98.39%98.76%97.41%
≥12μm100.0%100.0%100.0%99.78%99.57%98.76%97.41%
≥25μm100.0%100.0%100.0%100.0%100.0%99.34%99.14
