Ultra-High Flow Rate FPD Wet Process Filtration

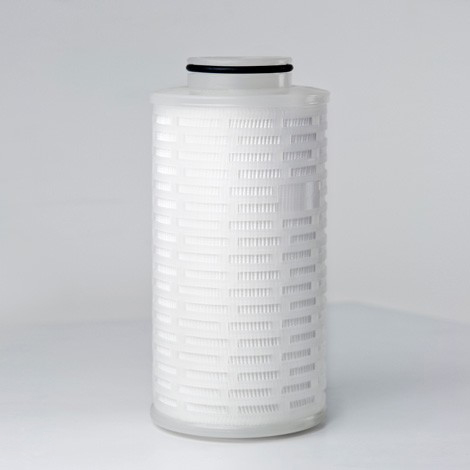

Ø130 Filter Cartridge Series

Ø130 Filter Cartridges are mainly used in high flow rate conditions in the manufacturing process of LCD panels. The design fully meets the space requirements of equipment. Ø130 filter cartridges are able to meet flow rates of 200L/min. In addition, the 2m² filtration area ensures high flows rates and dirt holding capacity which results in a decrease of filter replacements and downtime. Multiple filter media and a wide range of removal ratings are available.


Feature and Benefits

  • High Flow Rates

    Effective filtration area for single filter cartridges meet up to 1.45m² /10". Suitable for high-pressure filtration according to the pressure test. Single filter cartridge meets the flow rates of 200L/min at standard conditions.

  • Effectively Reduce Filtration Costs

    The large filtration area, high flow rates, and high dirt holding capacity extend the filter service life. As a result, filter replacement frequency and downtime decrease, thus reducing system cost.

  • Multiple Filter Media and Available in a Wide Range of Pore Sizes and Filter Media

    Multiple filter media (PP/PES/PTFE) and a wide range of removal ratings (0.05-90μm) meet different filtration and application requirements.

  • Electronic Grade Filter Medium

    Cage, core, support, and end caps of the filter are all composed of high-purity electronic grade PP medium. Ø130Filter Series adopts welding technology that utilizes no adhesives or surfactants to control effectively any extractables and to ensure the safe use of the filter cartridge.

  • Specification
  • Performance
  • Ordering Information

Working Characteristics

Filter MediaPP / PES / PTFE
End cap /Core/CagePP
Max. Operating Temperature80°C
Max. Differential Pressure0.4 MPa / 21°C
0.24 MPa / 80°C

Flow Rate Characteristics

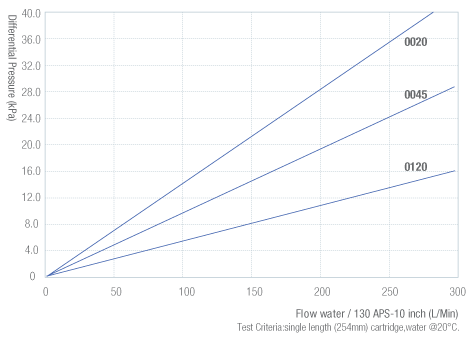

130 APS Flow Rate Characteristics

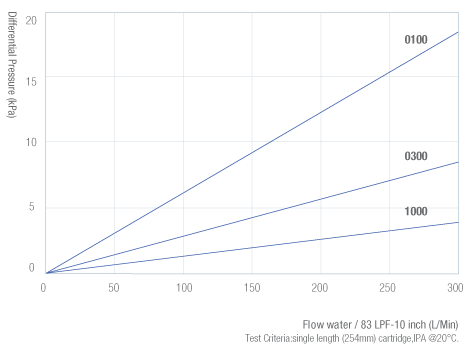

130-LPF Flow Rate Characteristics

130-PFSA2 Flow Rate Characteristics



Ordering Information

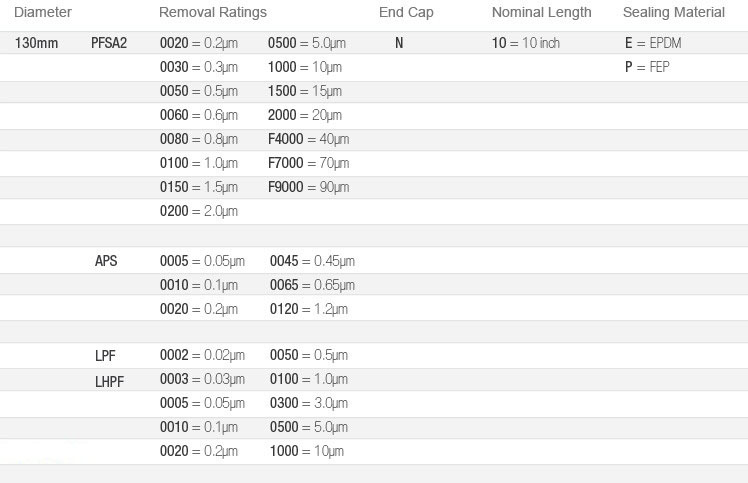

130 Ordering Information
