Cobetter Absoguard® Filter Cartridge is an pleated depths filter. It combines and nano fiber media, provides high efficiency with high particles retention. Cobetter Absoguard® Filter is an good choice for a wide range of digital printing ink jet inks filtration, especially for pre-filtration of dye-based inks.Absoguard® Filter is an good choice for small gels and terminal filtration before coating.
· Pleated surface provides high flow rate and extended service life.

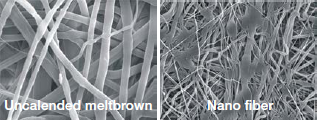

· Nano fiber media provides high particle retention and filtration performance.
· 100% all polypropylene construction provides wide chemical compatibility.
Material of Construction
| Filter Medium | Rolled Polypropylene Microfiber |
| Support Layer | Polypropylene |
| Core/Cage/End Caps | Polypropylene |
| O-Ring | Please refer to ordering information |
| Effective Filter Area | - |
Operating Conditions
| Maximum Temperature | 80°C |
| Max.Differential Pressure | 4.0 bar / 21°C 2.1 bar / 80°C |
| Steam Sterilization (Autoclave) | null |
| Inline Steam Sterilization | null |
| Hot Water Sterilization | null |

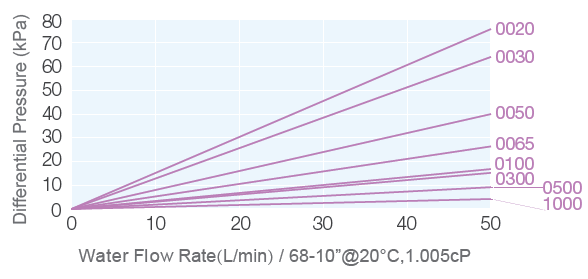

Flow Rate Characteristics
Retention Characteristic
| Pore size\ App | 0.5 | 1.0 | 3.0 | 5.0 | ||
| ≥1.0μm | 99.99% | 99.78% | 90.35% | - | ||
| ≥2.0μm | 100% | 99.99% | 95.45% | 91.78% | ||
| ≥5.0μm | 100% | 100% | 99.93% | 98.19% | ||
| ≥10.0μm | 100% | 100% | 100% | 99.99% | ||
| ≥12.0μm | 100% | 100% | 100% | 100% | ||
| ≥25.0μm | 100% | 100% | 100% | 100% | ||
| ≥35.0μm | 100% | 100% | 100% | 100% | ||
| ≥50.0μm | 100% | 100% | 100% | 100% |
Series | Removal Rating | End Cap | Lenght | Seal Material | Industry | ||
APP | 0030 0050 0065 0080 0100 0300 0400 0500 0600 0700 1000 2000 | = 0.3μm = 0.5μm = 0.65μm = 0.8μm = 1.0μm = 3.0μm = 4.0μm = 5.0μm = 6.0μm = 7.0μm = 10.0μm = 20.0μm | DOE = Double Open End TC = 222/Flat Cap TF = 222/Fin Cap SF = 226/Fin Cap SC = 226/Flat Cap | 05= 5" 10=10" 20=20" 30=30" 40=40" | S=Slilicone E=EPDM V=Viton P=Encapsulated Viton | C= Chemical | |
