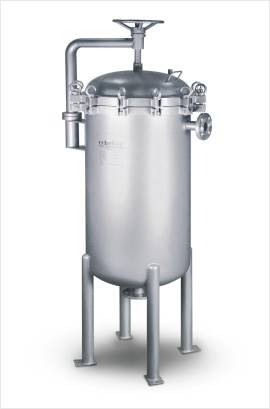

H-MBF (Standard Version)Filter bag housing utilizes a davit style design.
Side inlet/outlet design makes it suitable for use with various application requirements. Stainless steel grid mesh directly presses on the bag filter connection, which creates a tight seal and allows for a quick and efficient change-out of filter elements.
Compact design means less liquid loss.
3-bag to 12-bag filter housings is available depending on required flow rates.
Top-Inlet Bag Filter Housing H-TBFH-TBF is our recommendation for single bag filter housings as it’s suitable for various filtration requirements.
With a Top-Inlet design, liquid flows into the filter housing from the side inlet to the top of the filter, which helps to establish a pressure balance and reduction and free from turbulence, thus, protecting the filter bag.
During filtration, liquid flow directly from the top to the bag filter, this keeps volume low above the bag filter.The lid is pressed firmly against the bag fi
H-MBF (Standard Version)Filter bag housing utilizes a davit style design.
Side inlet/outlet design makes it suitable for use with various application requirements. Stainless steel grid mesh directly presses on the bag filter connection, which creates a tight seal and allows for a quick and efficient change-out of filter elements.
Compact design means less liquid loss.
3-bag to 12-bag filter housings is available depending on required flow rates.
H-SBFUsing a triangle shaped lid, one side is fixed to the filter housing, which makes it convenient to use and maintain.
Using a clamp ring and spring to compress the bag filter, thus, ensuring a 360° sealing between the housing and filter bag.
The Z-type support allows for equal pressure against the basket.
Mechanical polish and sand blast are available according to customer’s requirements.
