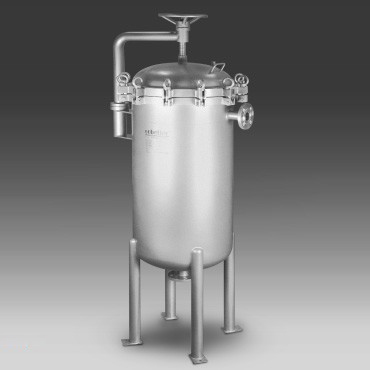

H-MBF (Standard Version)
Easy to Operate;
  • Filter bag housing utilizes a davit style design.
  • Side inlet/outlet design makes it suitable for use with various application requirements. Stainless steel grid mesh directly presses on the bag filter connection, which creates a tight seal and allows for a quick and efficient change-out of filter elements.
  • Compact design means less liquid loss.
  • 3-bag to 12-bag filter housings is available depending on required flow rates.


  • Specification
  • Drawing
  • Ordering Information

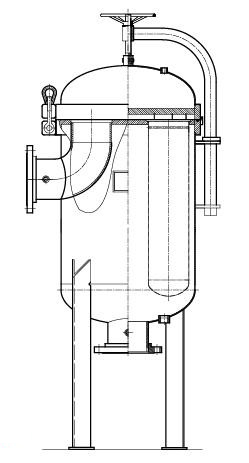

Drawing


Polish TypeMirror Polish or Sand-Blasted; Wire Drawing
Max. Pressure1.0Mpa
Max Temp.150°C
MaterialSS304 or SS316L
inlet / OutletFlange

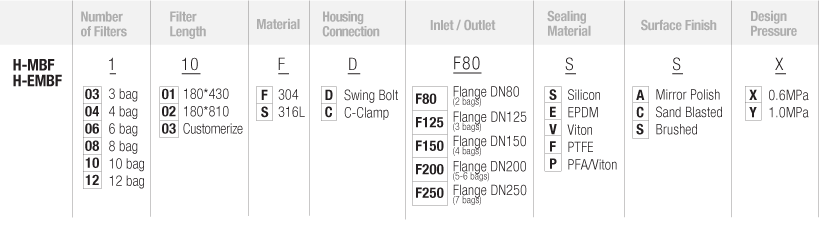

OrderingInformation
