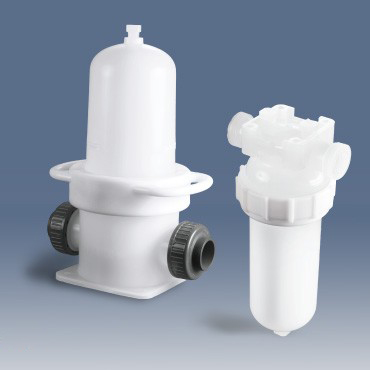

H-CPP &130H-CPP Natural PP Housing
Broad Chemical Compatibility

H-CPP &130H-CPP Filter Housing Series constructed of natural Polypropylene without any coloring agents or chemicals. These housings provide broad chemical compatibiliy and are ideally suited for food&beverage, ultrapure water, and other high purity chemical applications.

Design Features

H-CPP Filter Housings are compatible with Ø68mm and Ø83mm filter cartridges

  • 130H-CPP Filter Housings are compatible with Ø130mm filter cartridges
  • Able to use filter cartridges with SOE (222/226) endcap configurations
  • Specification
  • Drawing
  • Ordering Information

Materials of Construction

Housing BodyNatural Polypropylene
Closure CapReinforced Polypropylene
SpannerPolypropylene
SealingEPDM / Viton / PFA
Closure NutPolypropylene x3


Operation Conditions

Max Operation Pressure6.9bar / 25C°
Max Operation Temperature35C°


Cartridge Specification

Number1
Diameter68mm / 83mm / 130mm
Length10" / 20"


Maximum Flow Rate

Filter LengthMax . Flow Rate(LPM) - Water
10 inch15
20 inch30

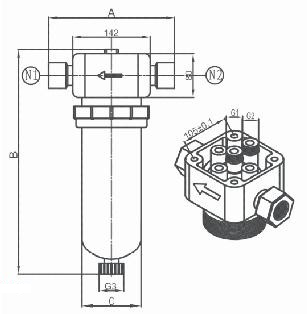

Drawing

83/68

Inlet / Outle
(N1/N2)		3/4"NPT,1"NPT
1"union,1-1/2"union (JIS Standard)		222 226
Vent (G1/G2)3/8"NPT
Drain (G3)1/4"NPT
Inlet / Outlet
Distance(A)		229.5mm
Height (B)10"=419mm 20"=677mm
Body Diameter (C)104mm




130

Inlet / Outlet
(N1/N2)		40A/50A/65A334
Drain (N3)1/4"NPT
Drain (G3)1/4"NPT
Height (A)334mm
Height (B)10"=430mm
Body Diameter (C)104mm

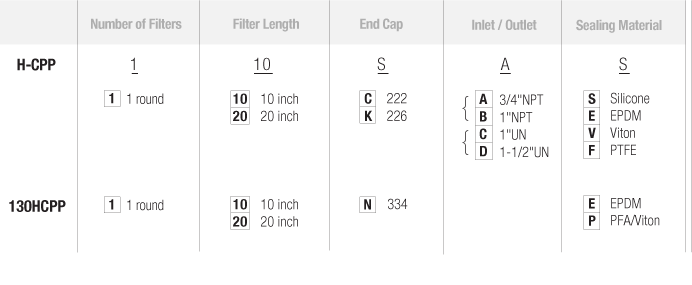

OrderingInformation
